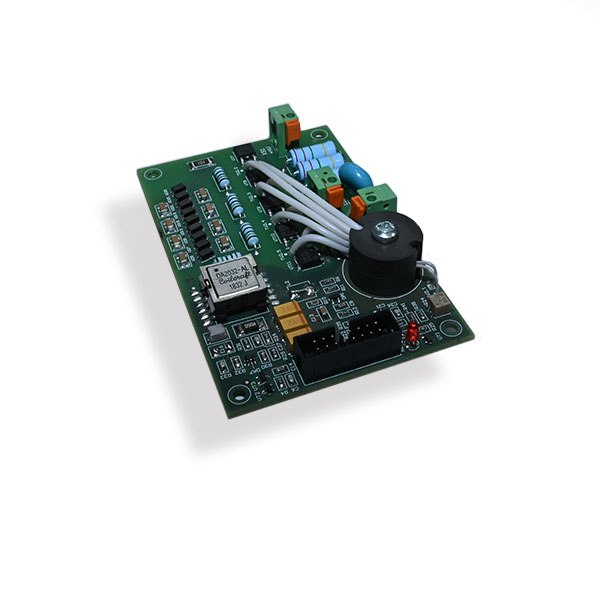

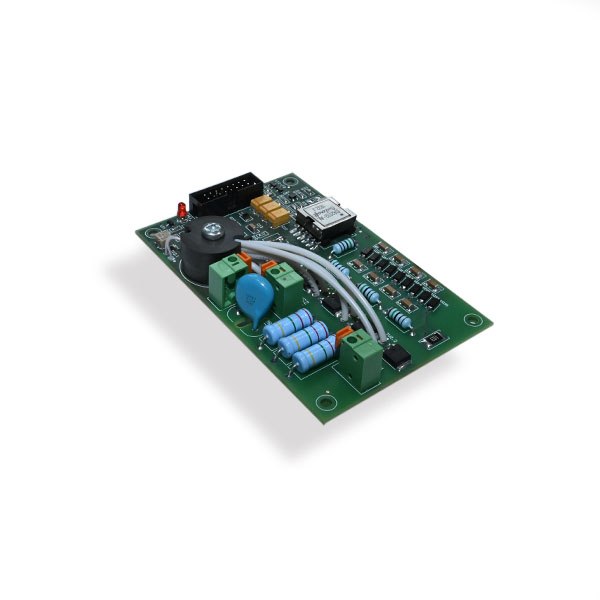

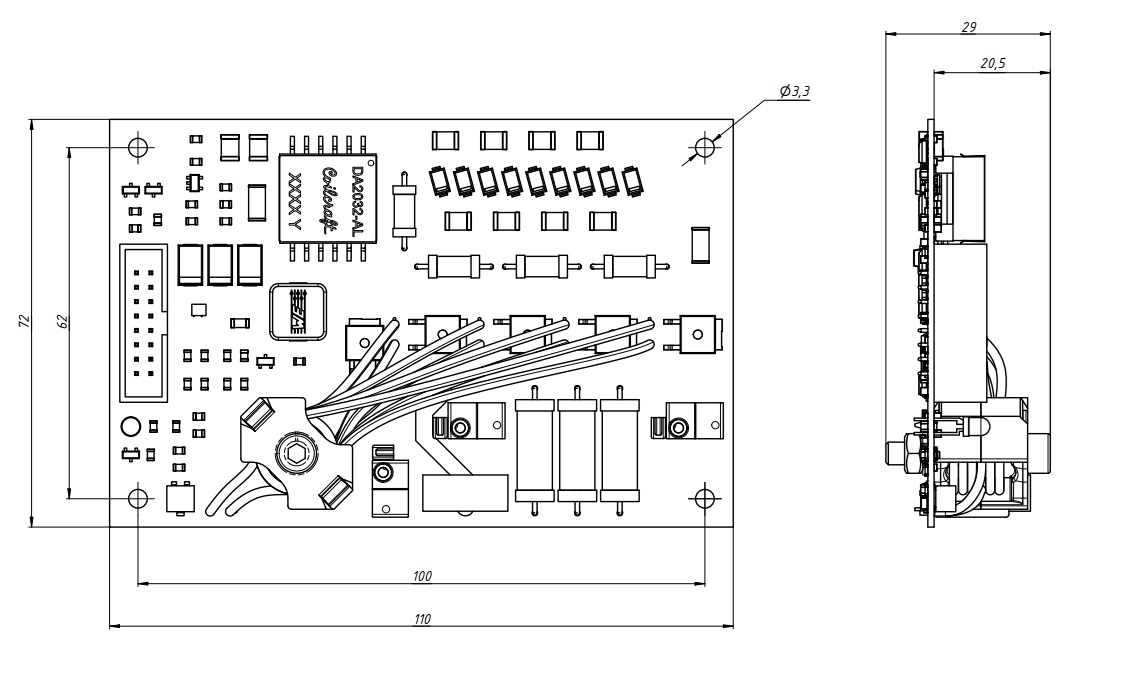

EOMDRV-2

1.

Output voltage adjustment range

2.5 – 5.5 kV

2.

High voltage output pulse duration

7 – 10 µs

3

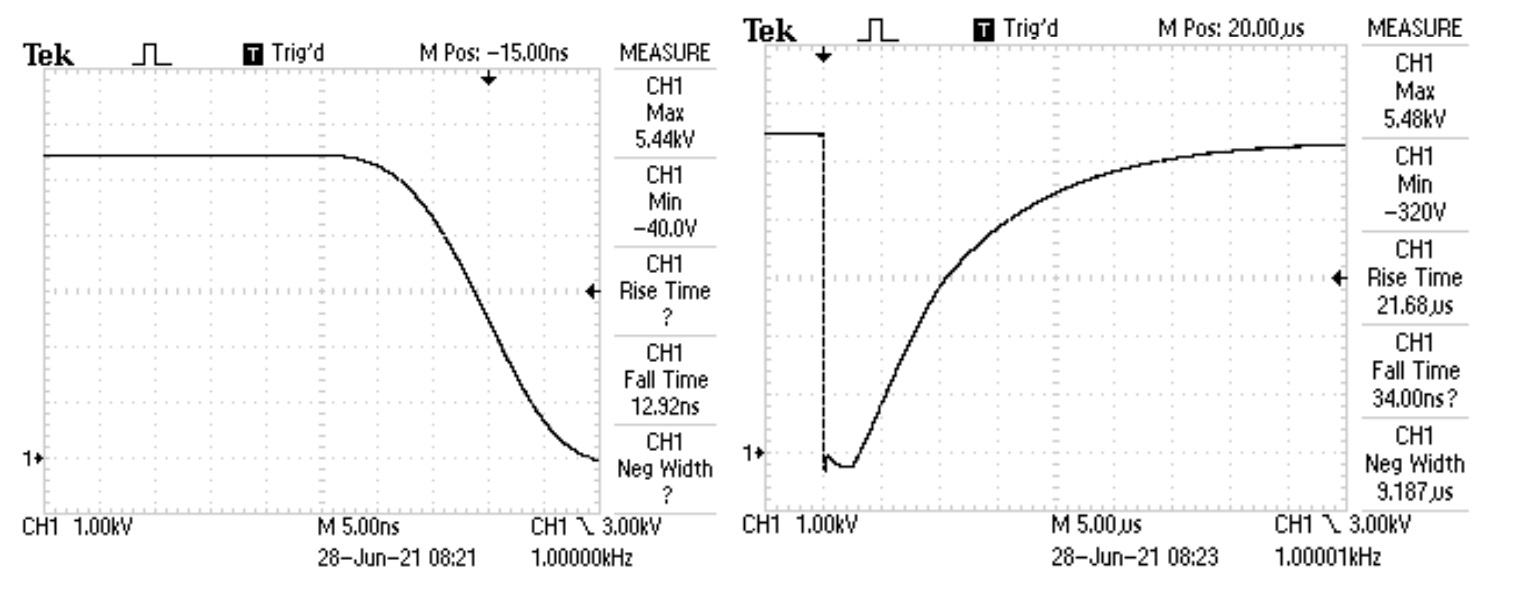

High voltage output pulse rise time, max

12 ns

4.

High voltage output pulse delay, max

2 µs

5.

Max pulse rate @ 5kV output voltage and 10pF load capacitance

10 kHz

6.

Discrete modulation signal at the IN_MOD input

TTL

7.

Rated supply voltage

12 V

8.

Supply current @ up to 1kHz output pulse rate, max

0.4 A

9.

Supply current @ 5kV output voltage, up to 10kHz output pulse rate, and 10pF load capacitance, max

1 A

10.

Sensitivity at the VPROG control input setting the output voltage

2 kV/V

11.

Signal level at the VMON diagnostic output of the output voltage control

0.5 V/kV

12.

Operating ambient temperature range

0 0С to 40 0С
