Safe and rigid housing. EEL diode pumping. Optimized for long service life performance.
The module is designed to be used as a part of generator in an intracavity application, as well as an amplifier for an extracavity application. NDYLF is an anisotropic active element that offers polarized emission.
Part number 2-00448-01

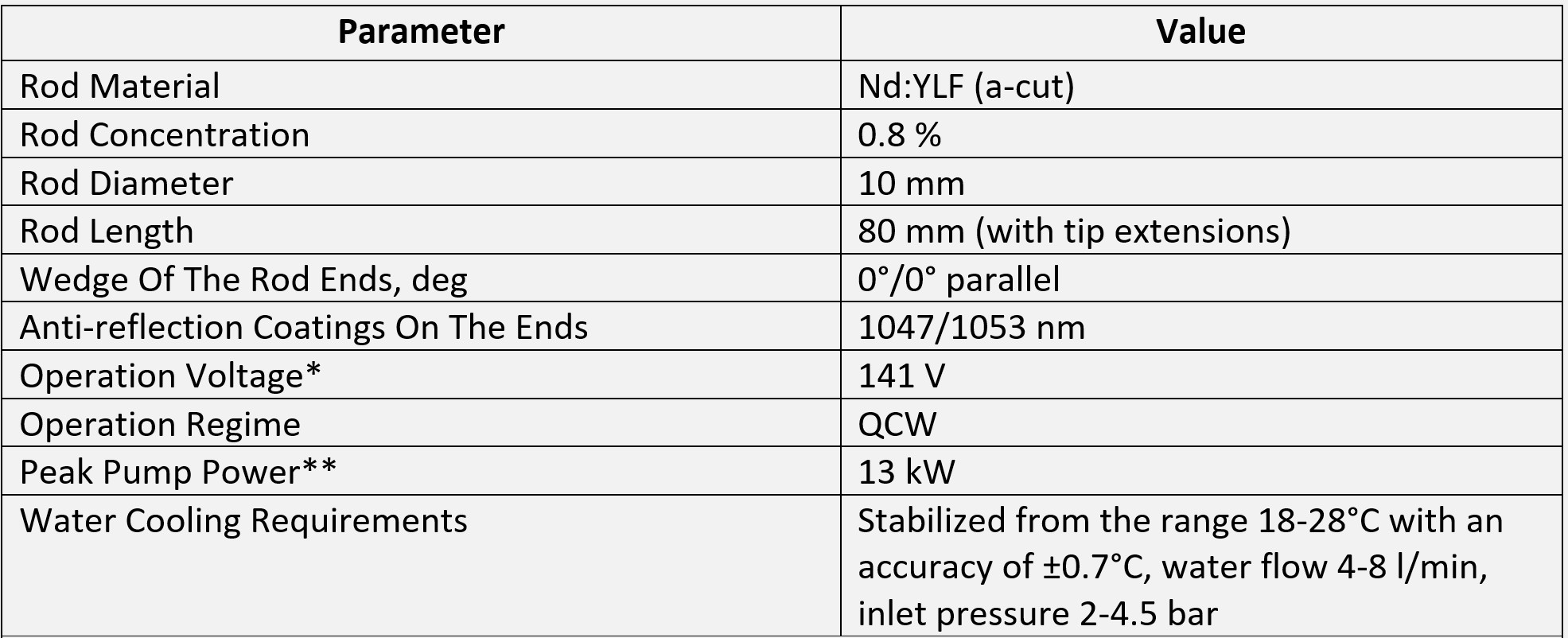

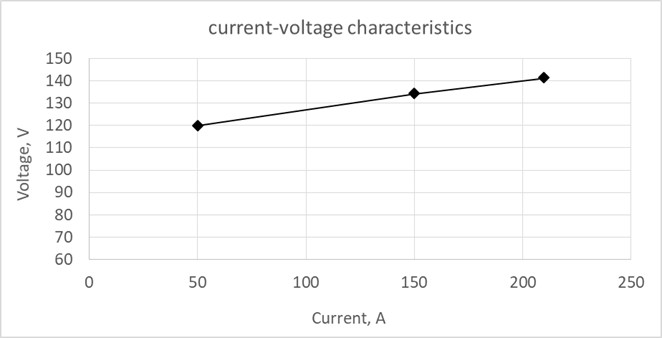

* See typical current-voltage characteristics below
** Calculated for standard operation mode: pulse duration 0.5 ms, repetition rate 10 Hz, current 180 A

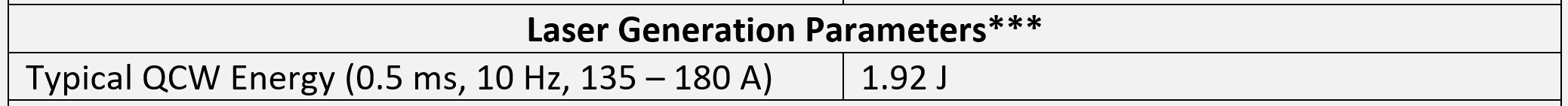

*** From a gain switched, 260 mm long cavity with flat 80% reflectivity output coupler, flat high reflector and focusing intracavity lens F=2300 mm.
