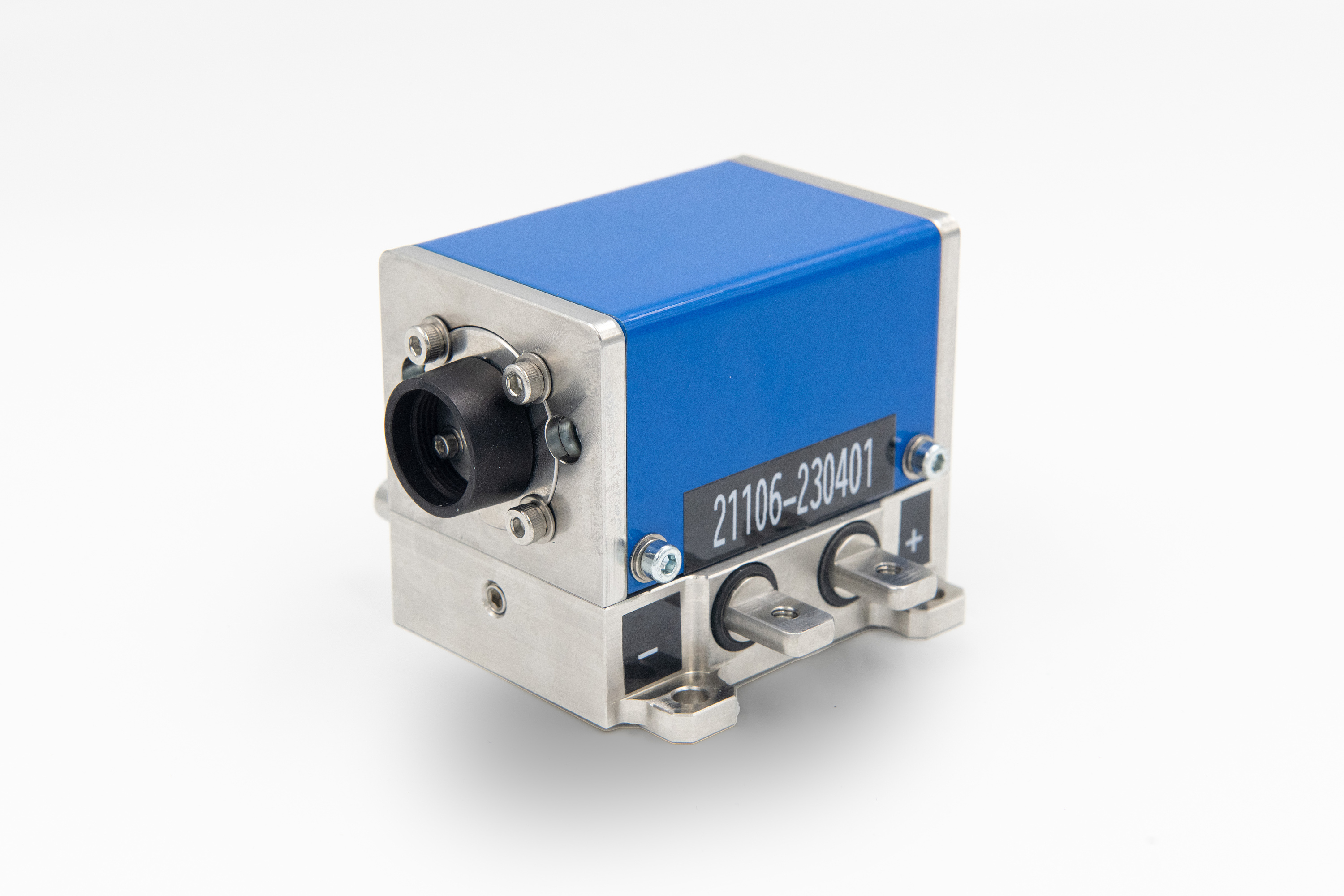

NDYAG-CW036-12-3

CW mode EEL diode pumping. 24/7 perfromance.

1064nm

WL

CW

Mode

360W

Pumping power

100W

Output power

D3x73

Rod size

Request Price

Description

The module is designed to be used as a part of generator in an intracavity application, as well as an amplifier for an extracavity application.

Specification

Model	NDYAG-CW036-12-3
Rod material	Nd:YAG
Rod concentration	1.0%
Rod diameter	3mm
Rod length	73mm
Operation mode	CW
Maximum voltage	22V
Maximum current	30A
Average power	100W

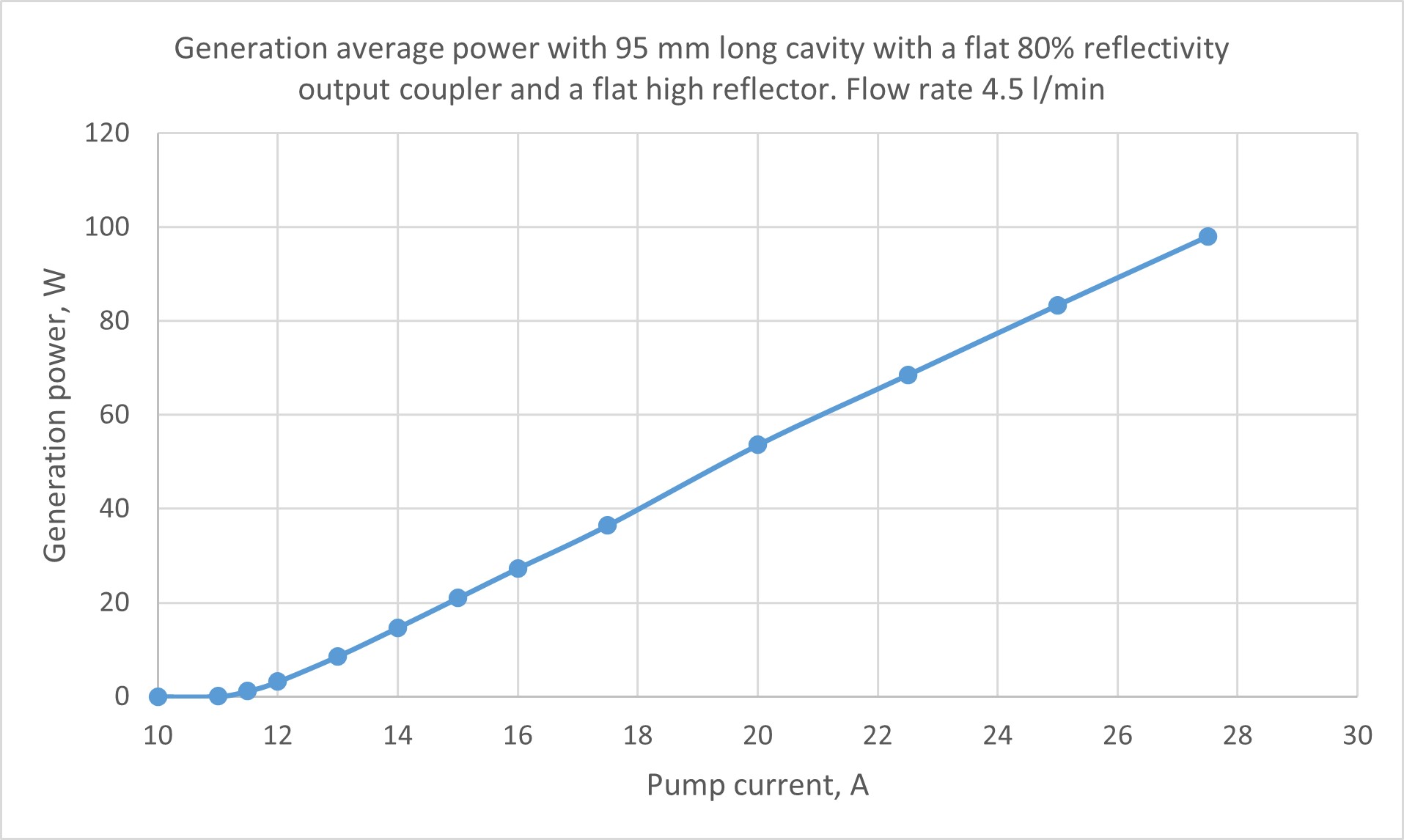

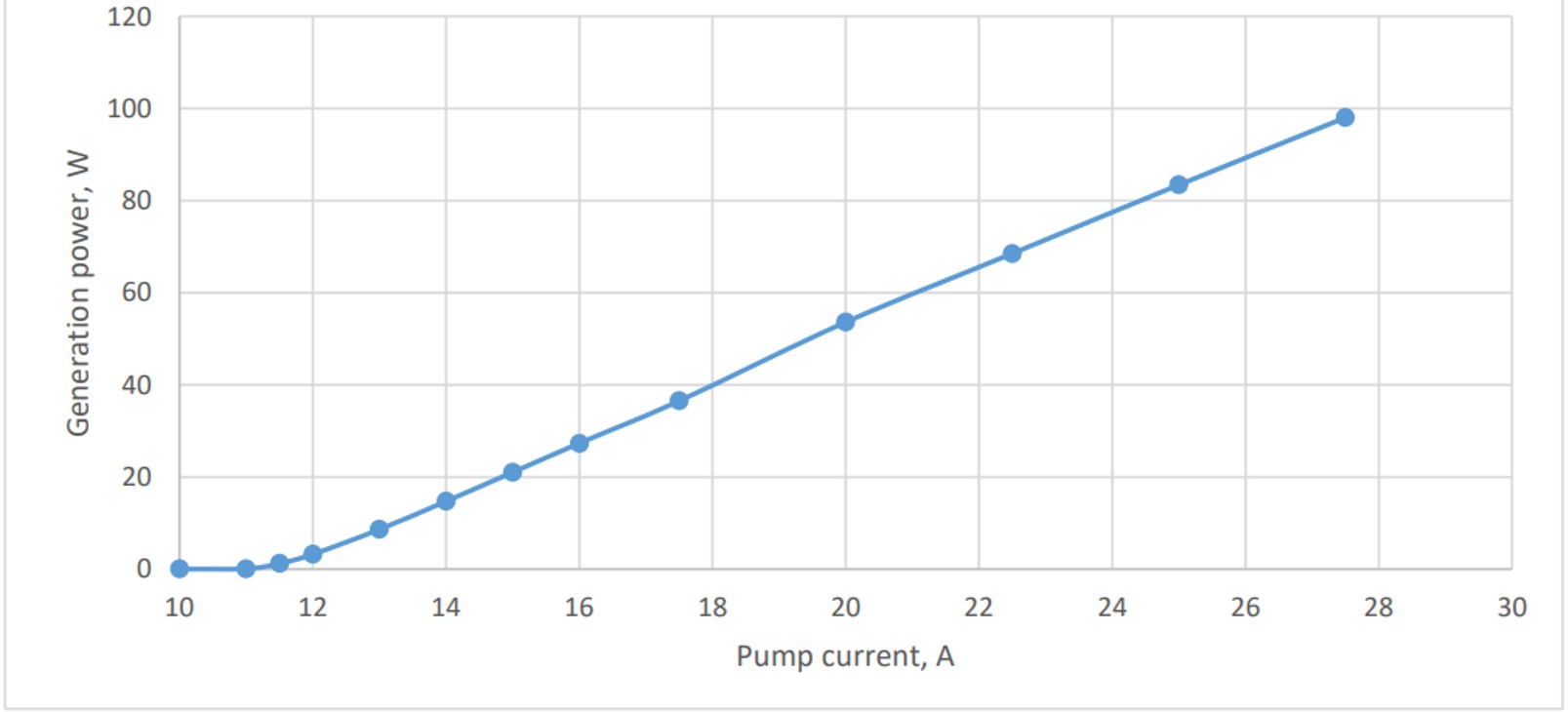

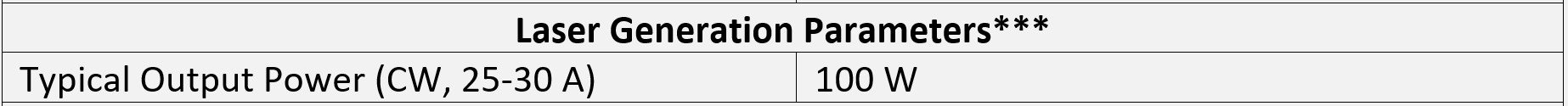

Generation data @ cavity length 95mm, HR mirror flat, output coupler R=80% flat

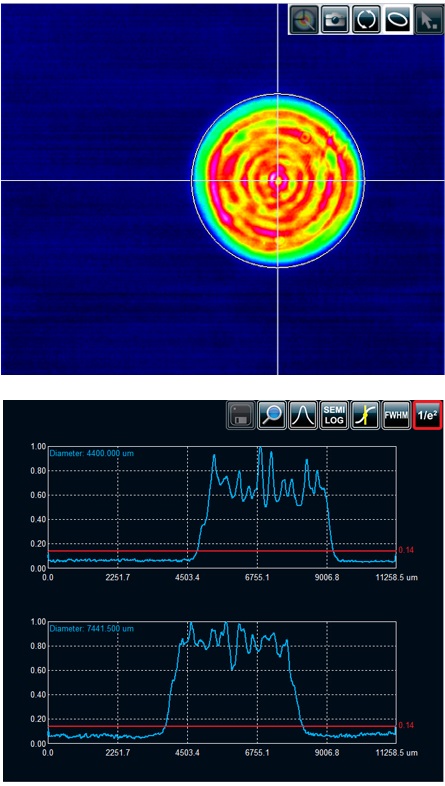

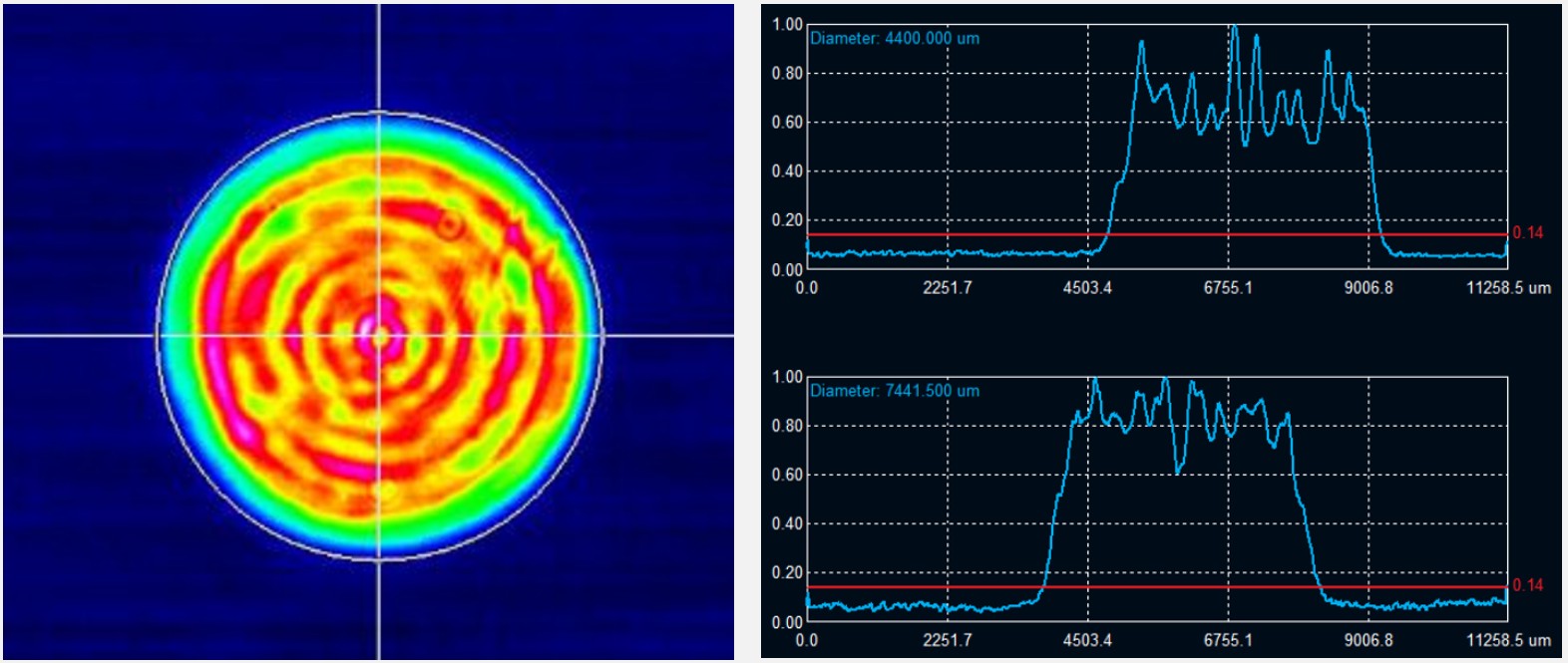

Beam profile at the distance of 300 mm from output coupler @ average power 75 W

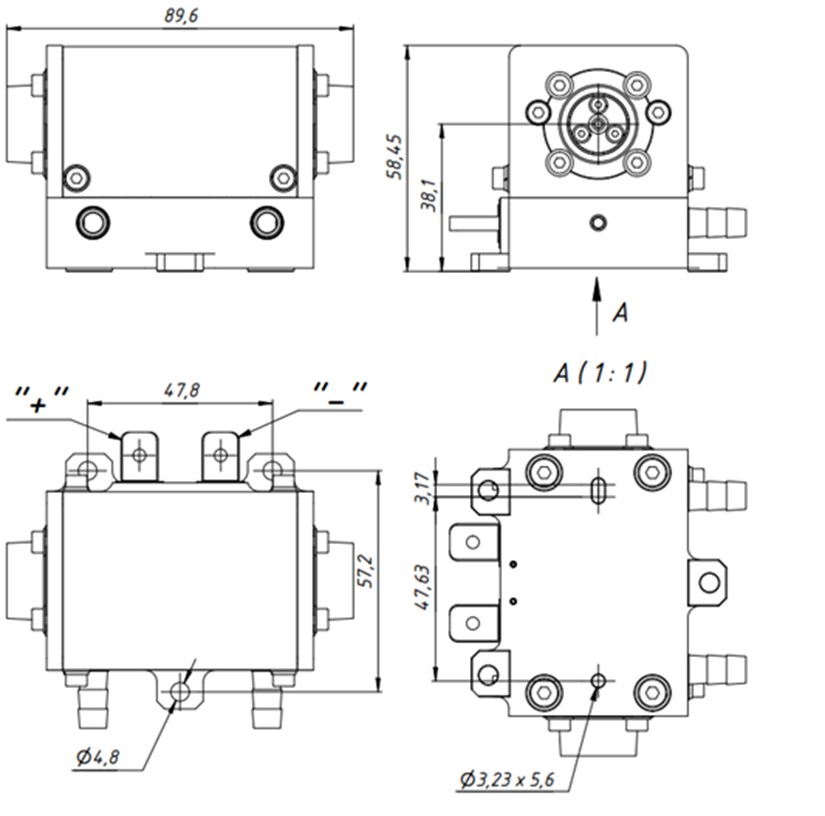

Dimensional drawing
