MODEL NDYAG-QCW11V-65-9

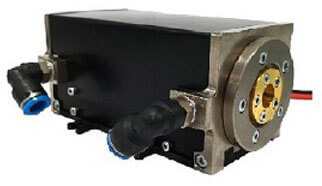

- a laser gain module
- a crystal rod
- a driver
- laser gain module + laser diode driver
- laser gain module only (driver is provided by Customer)
- customizeddesign

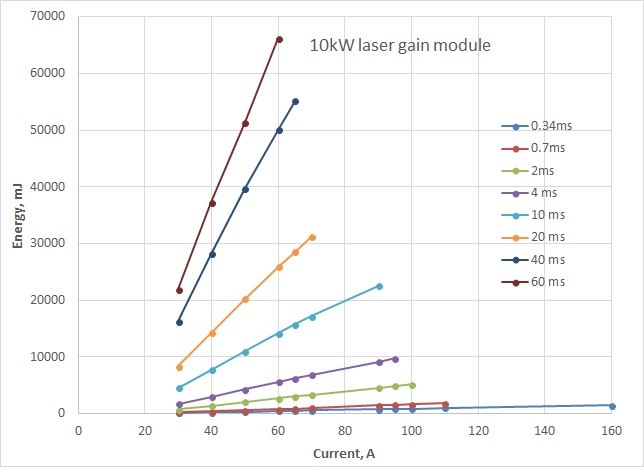

| Current, A | 0.34ms | 0.7ms | 2ms | 4ms | 10ms | 20ms | 40ms | 60ms |
|---|---|---|---|---|---|---|---|---|
| 20Hz | 10Hz | 5Hz | 5Hz | 3Hz | 2Hz | 1Hz | 1Hz | |
|
Energy, mJ |
Energy, mJ |
Energy, mJ |
Energy, mJ |
Energy, mJ |
Energy, mJ |
Energy, mJ |
Energy, mJ |
|
| 30 | 114 | 186 | 777 | 1694 | 4538 | 8319 | 16300 | 21946 |
| 40 | 218 | 358 | 1386 | 2989 | 7735 | 14262 | 28186 | 37267 |
| 50 | 329 | 548 | 2034 | 4285 | 10958 | 20205 | 39732 | 51346 |
| 60 | 441 | 757 | 2698 | 5592 | 14164 | 25894 | 50090 | 66253 |
| 65 | 505 | 866 | 3000 | 6190 | 15714 | 28571 | 55147 | |
| 70 | 562 | 972 | 3335 | 6811 | 17130 | 31200 | ||
| 90 | 774 | 1410 | 4567 | 9143 | 22571 | |||
| 95 | 829 | 1515 | 4857 | 9714 | ||||
| 100 | 867 | 1631 | 5143 | |||||
| 110 | 990 | 1839 | ||||||
| 160 | 1457 | |||||||
| 180 | 1640 |

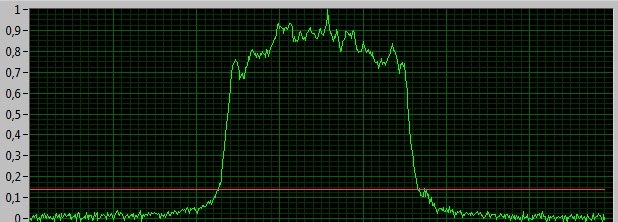

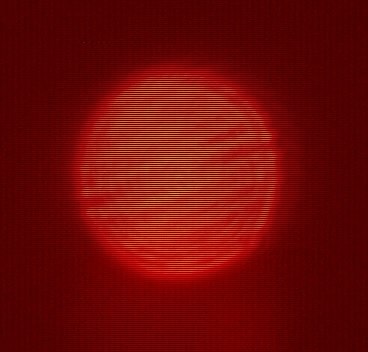

Typical nearfield beam profile at 1064 nm (200 mm cavity, Roc=80%)
