NDYAG-QCW13-55-4

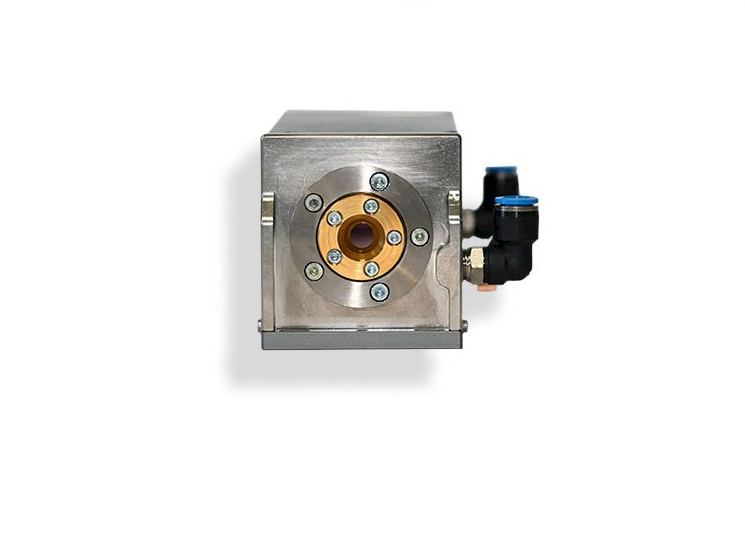

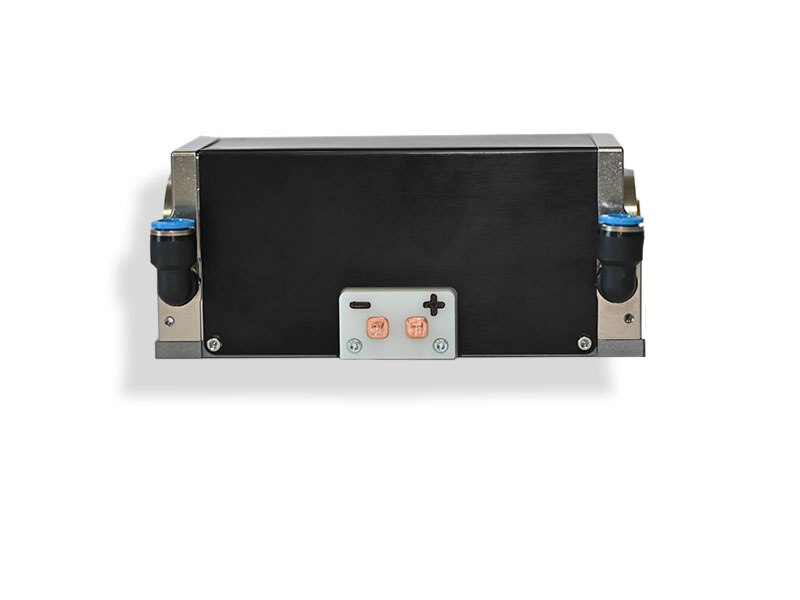

Safe and rigid housing. EEL diode pumping. Optimized for long service life performance.

1064nm

WL

QCW

Mode

13kW

Peak pump

0.25-4ms

Pulse length

1.05-8J

Pulse energy

Description

The module is designed to be used as a part of generator in an intracavity application, as well as an amplifier for an extracavity application.

Specification

Model	NDYAG-QCW13-55-4
Rod material	Nd:YAG
Rod concentration	1.2%
Rod diameter	4mm
Rod length	165mm
Operation mode	QCW
Peak pump power	13kW (0.25ms)/6kW (4ms)
Small Signal Gain	33

Pulse Width	0.25ms	4ms
Pulse repetition rate	20Hz	5Hz
	0.5%	2%
Current	230A	115A
Typical QCW generation energy (from a gain switched, 260mm long cavity with a flat 80% reflectivity output coupler and a flat high reflector)	1.05J	8J

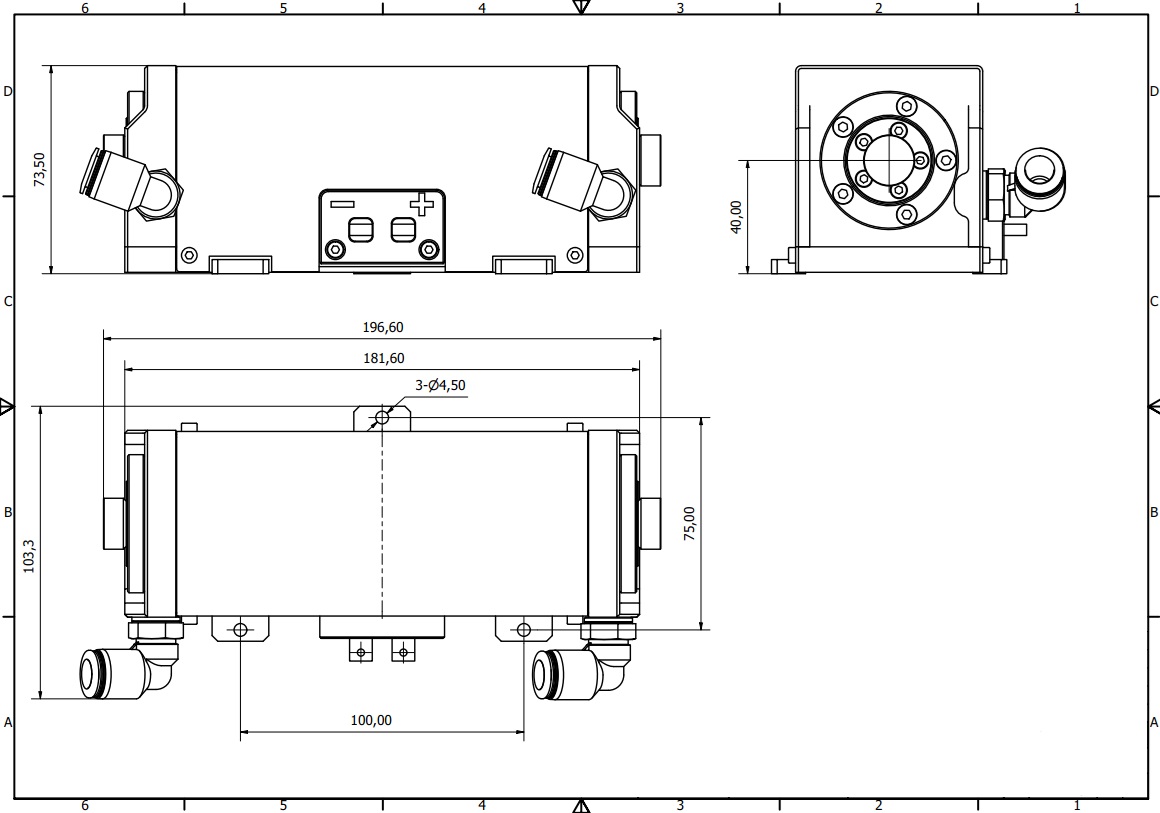

Dimensional drawing
