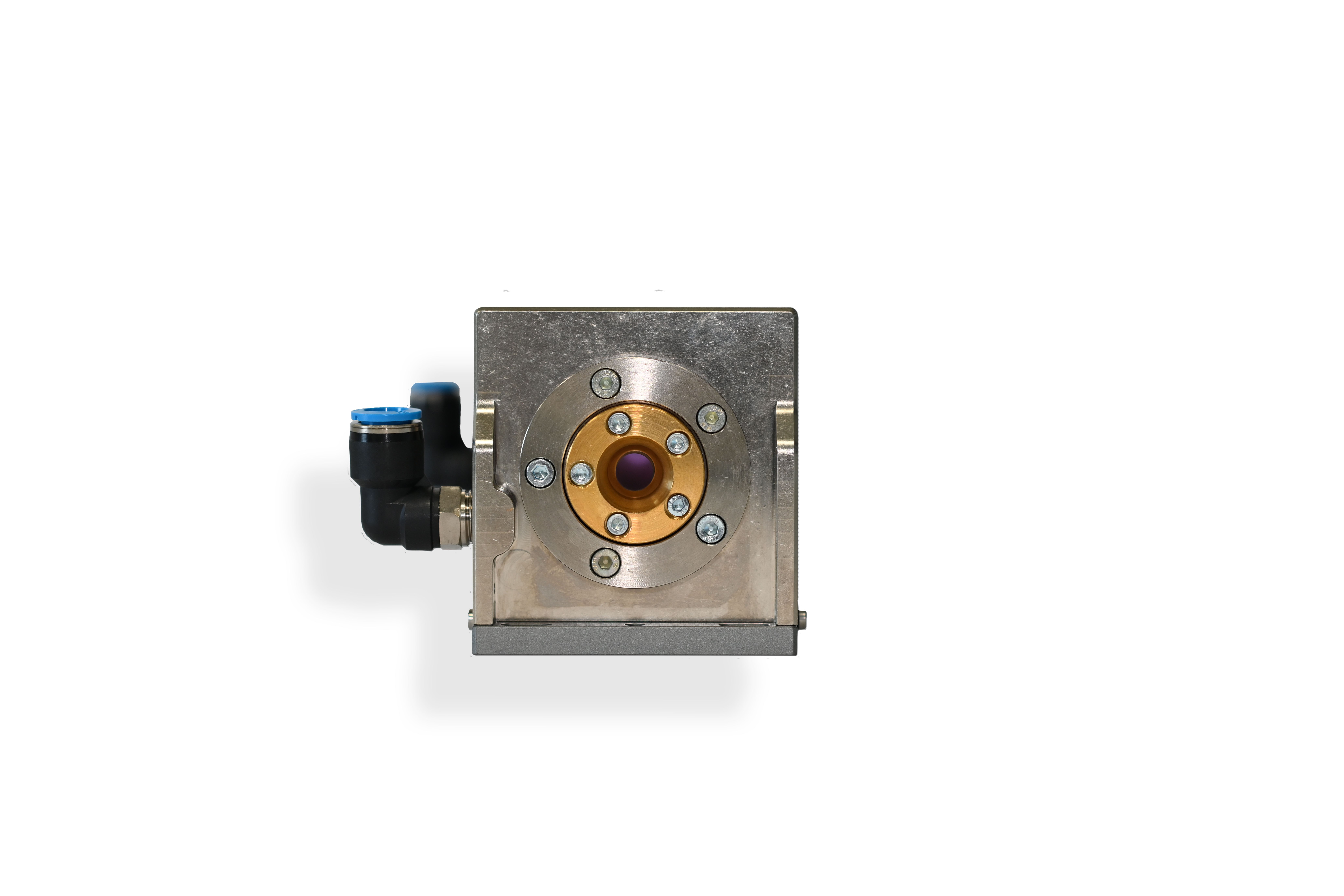

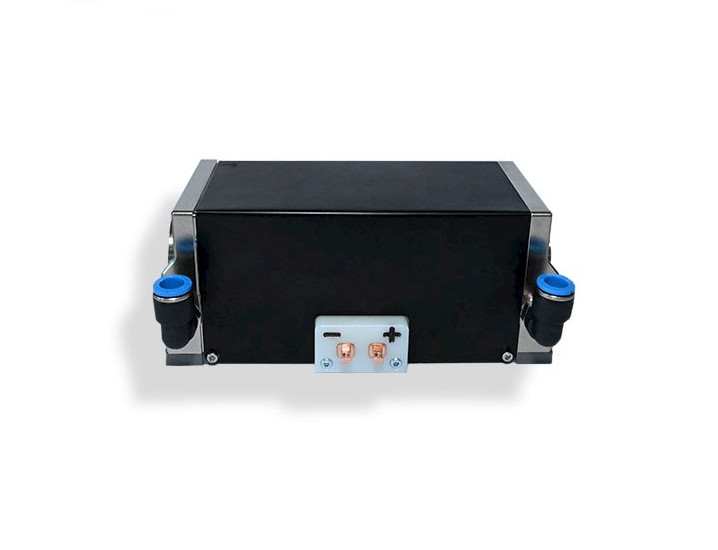

NDYAG-QCW21-90-9

Safe and rigid housing. EEL diode pumping. Optimized for long service life performance.

1064nm

WL

QCW

Mode

21kW

Peak pump

0.34-60ms

Pulse length

2.85-110J

Pulse energy

Request Price

Description

The module is designed to be used as a part of a generator in an intracavity application, as well as an amplifier for an extracavity application.

Part number 2-00477-02.

Specification

* Typical current-voltage characteristics is shown below.

** Calculated for standard operation mode: pulse duration 0.34 ms, repetition rate 20 Hz, current 210 A.

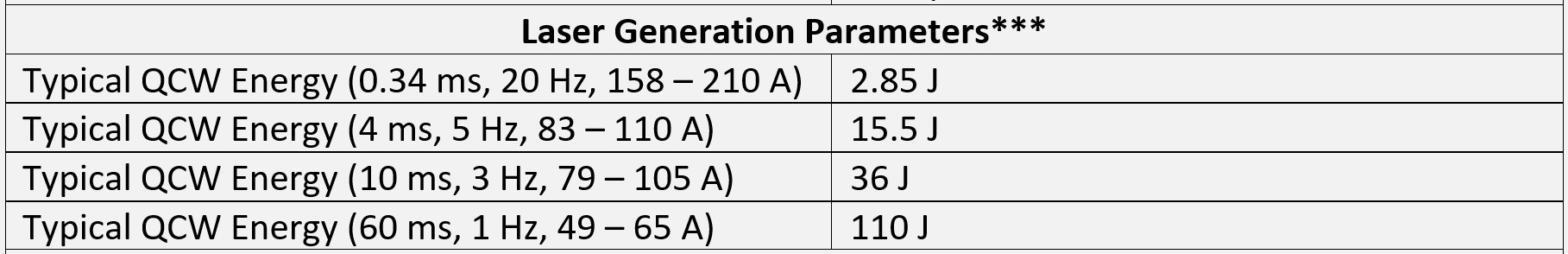

Product test parameters

*** From a gain switched, 260 mm long cavity with a flat 80% reflectivity output coupler and a flat high reflector.

Operational reference

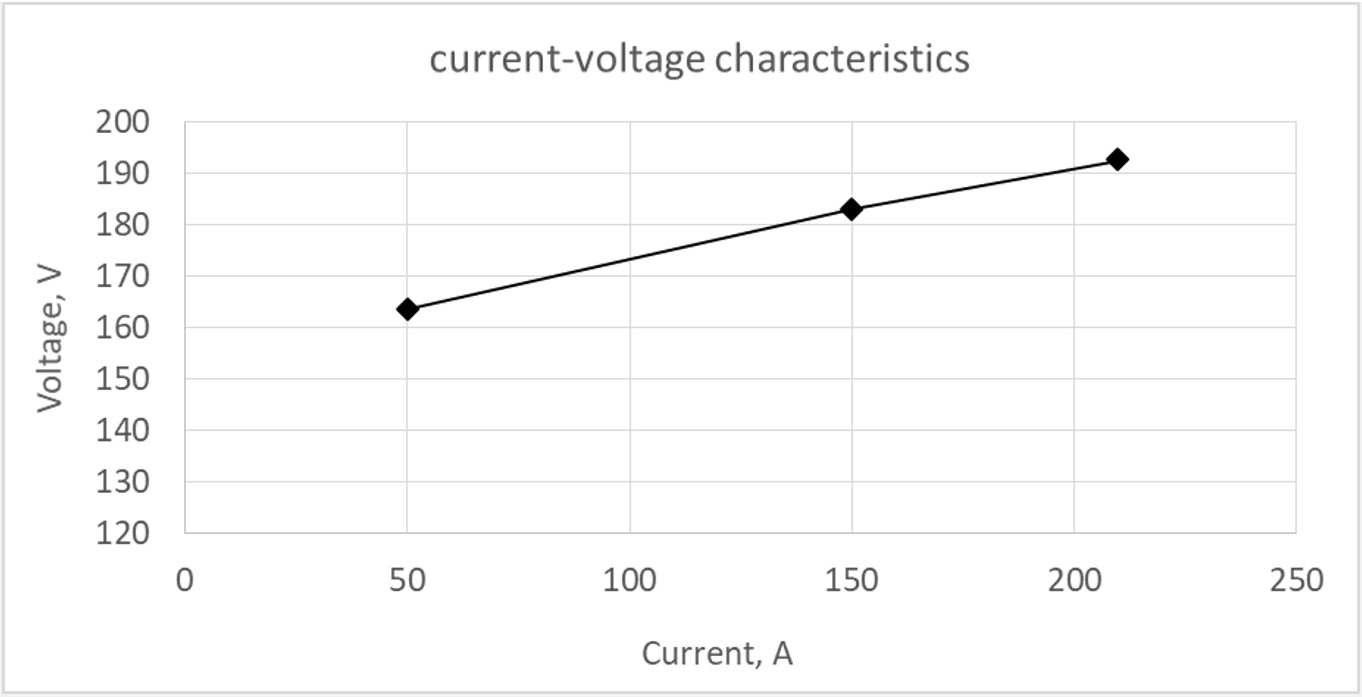

Typical current voltage characteristics

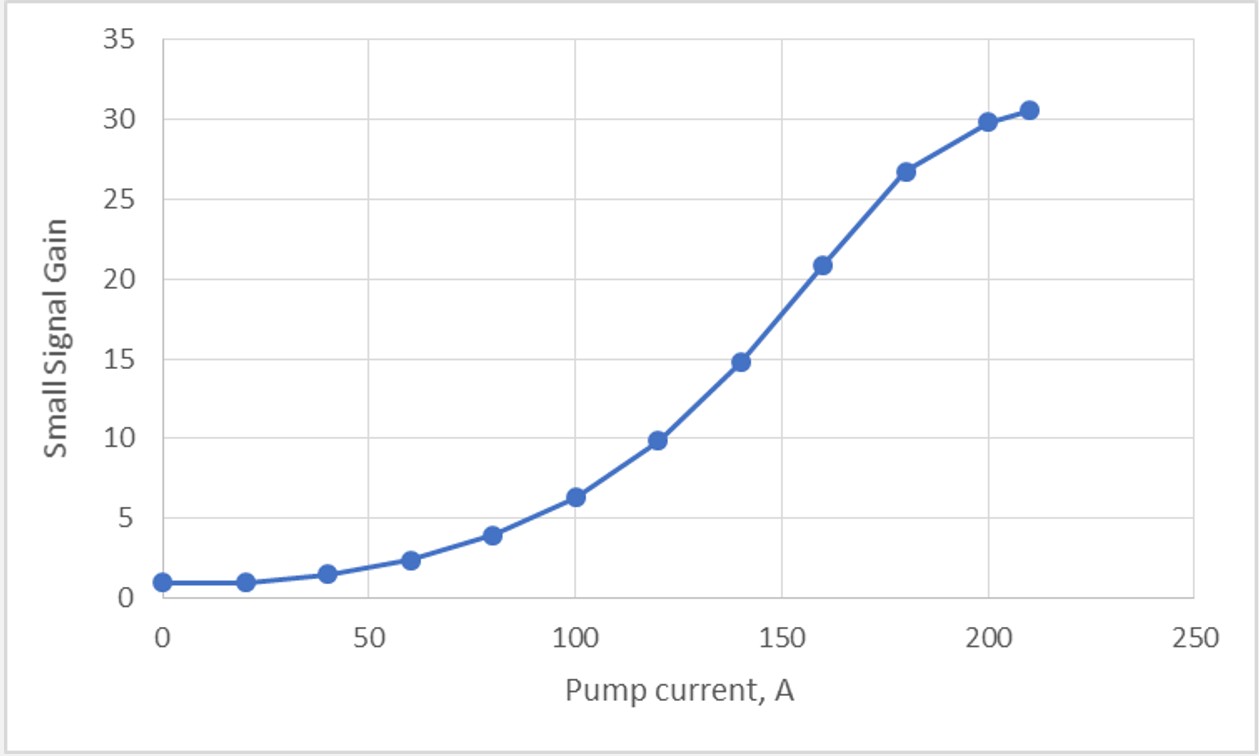

Small signal gain (for reference only)

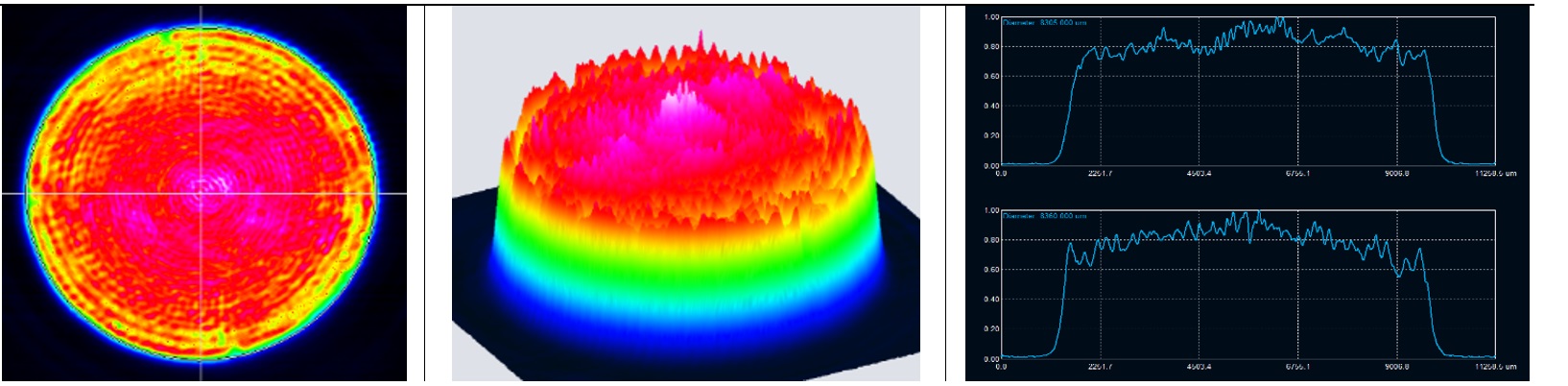

Typical beam profile (for reference only)

output of the laser cavity: 0.34ms, 10Hz, 210А

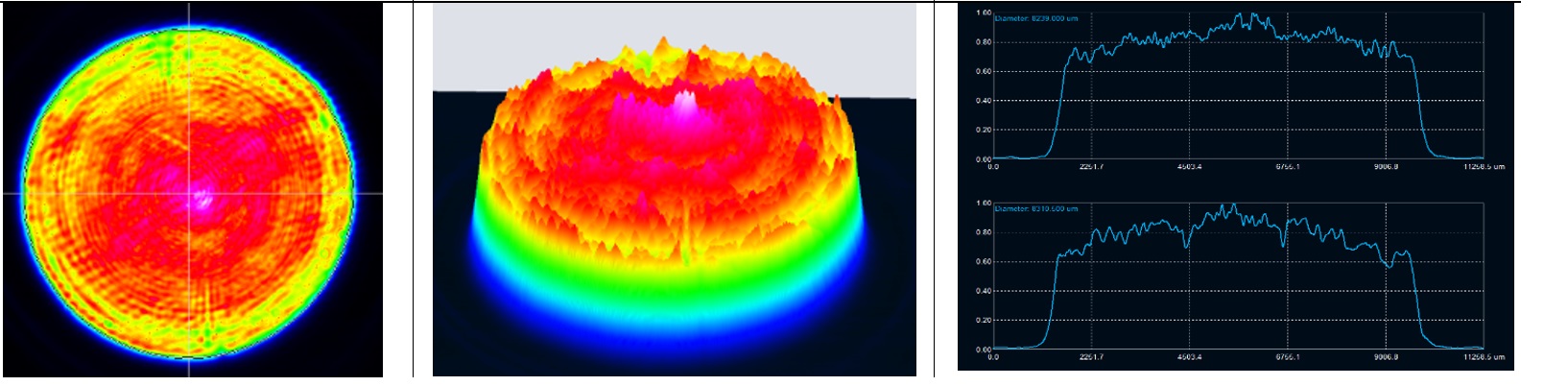

output of the laser cavity: 2ms, 5Hz, 115А

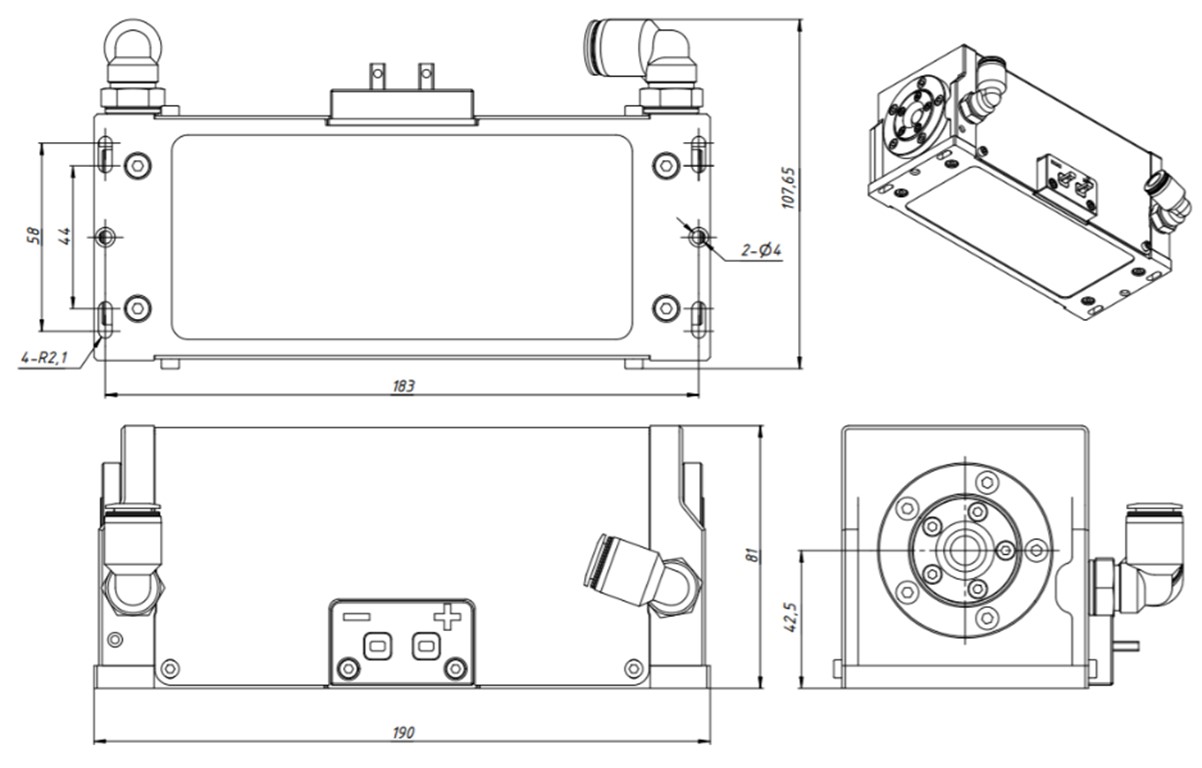

Dimensional drawing
