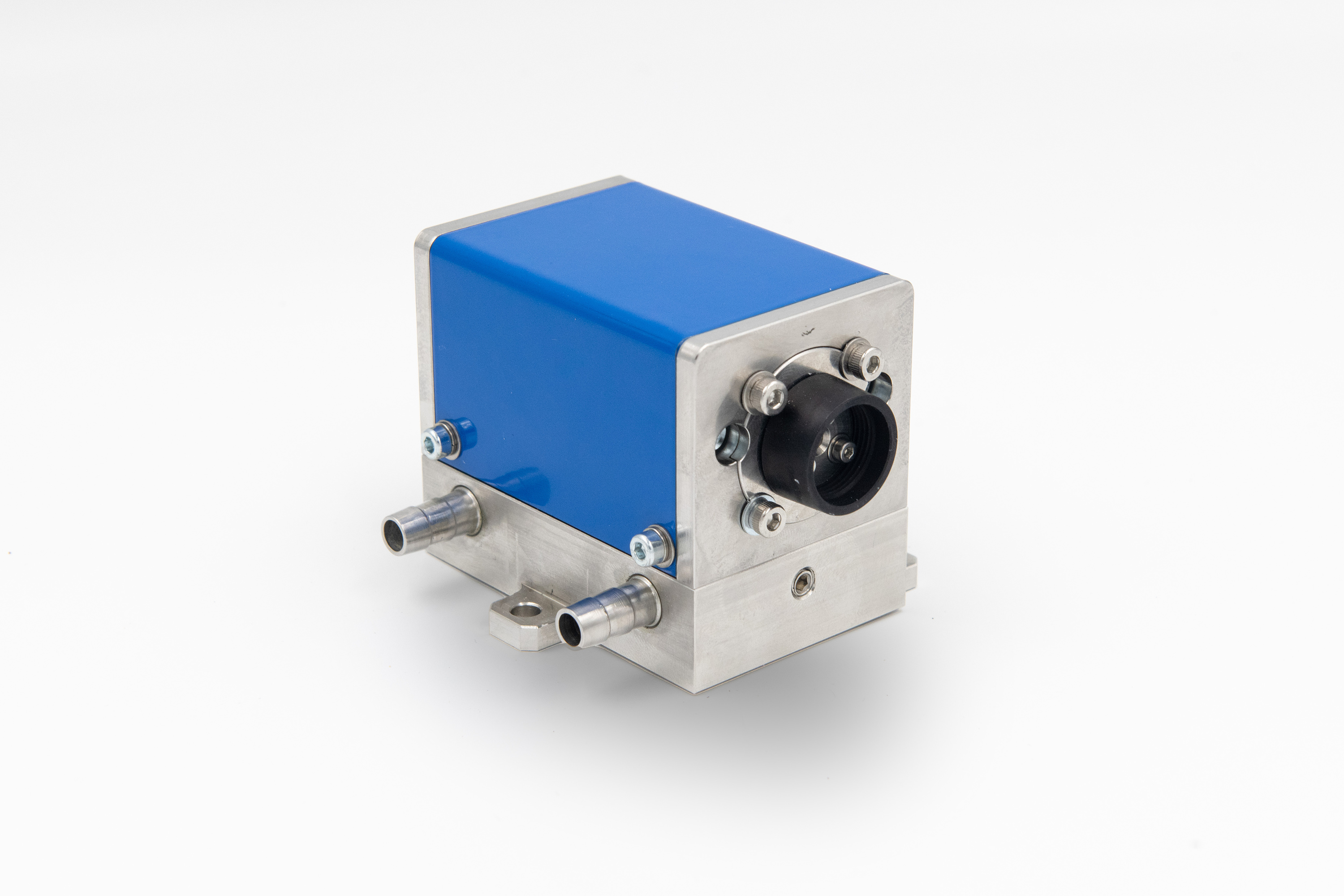

NDYAG-QCW2.8-12-3

Safe and rigid housing. EEL diode pumping. Optimized for long service life performance.

1064nm

WL

QCW

Mode

2.8kW

Peak pump

0.34-60ms

Pulse length

0.34-12.5J

Pulse energy

Request Price

Description

The module is designed to be used as a part of a generator in an intracavity application, as well as an amplifier for an extracavity application.

Part number 2-00916-03

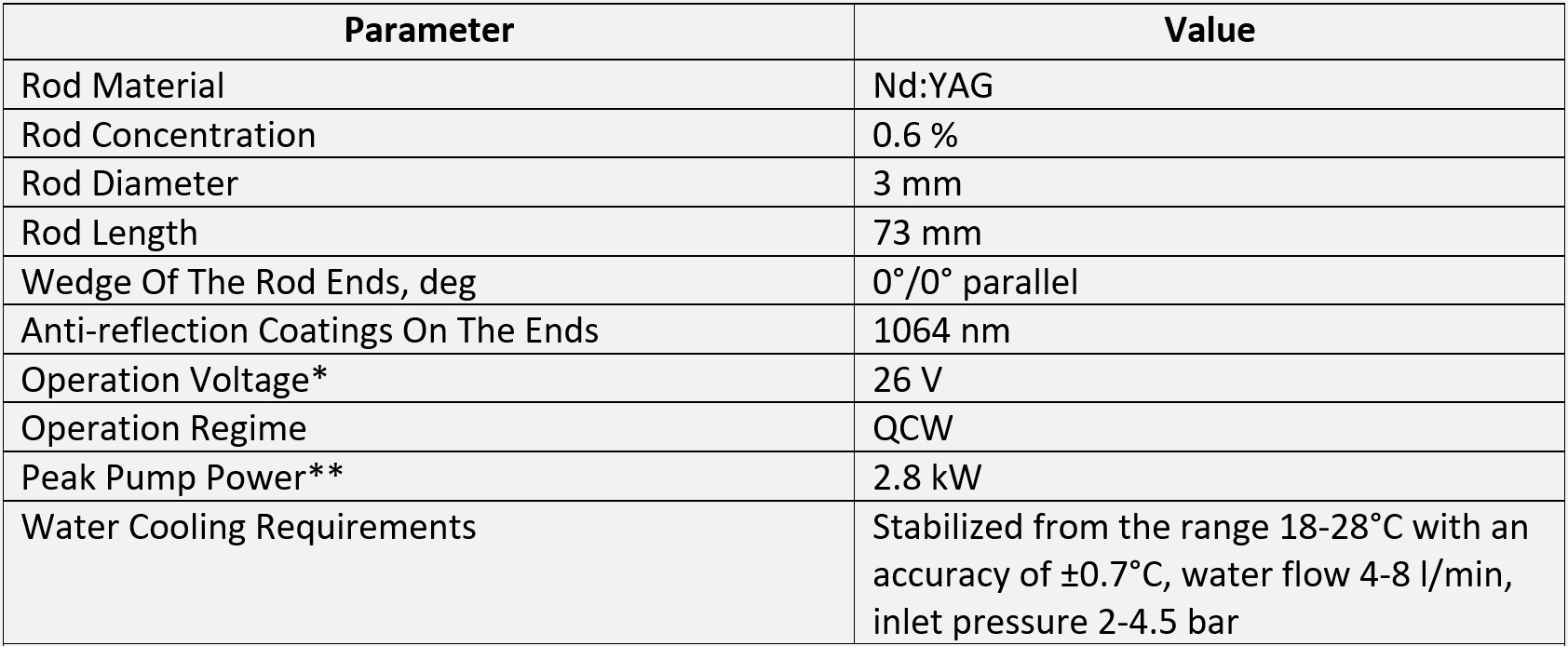

Specification

* Typical current-voltage characteristics is shown below

** Calculated for standard operation mode: pulse duration 0.34 ms, repetition rate 20 Hz, current 210 A

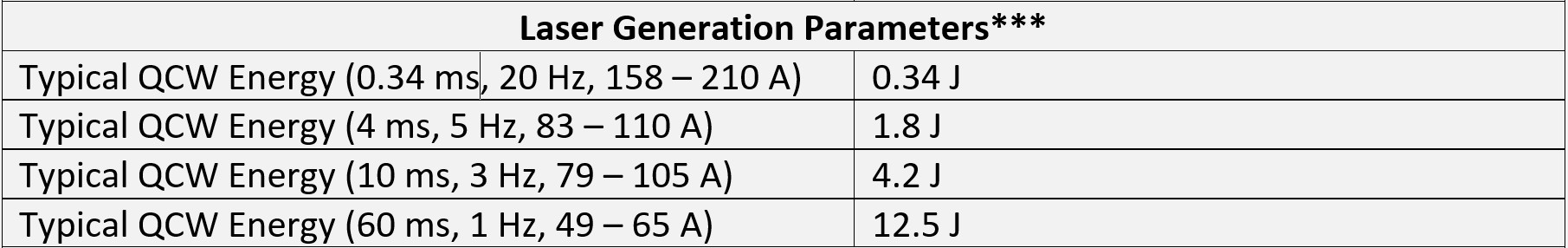

Product test parameters

*** From a gain switched, 95 mm long cavity with a flat 80% reflectivity output coupler and a flat high reflector.

Operational reference

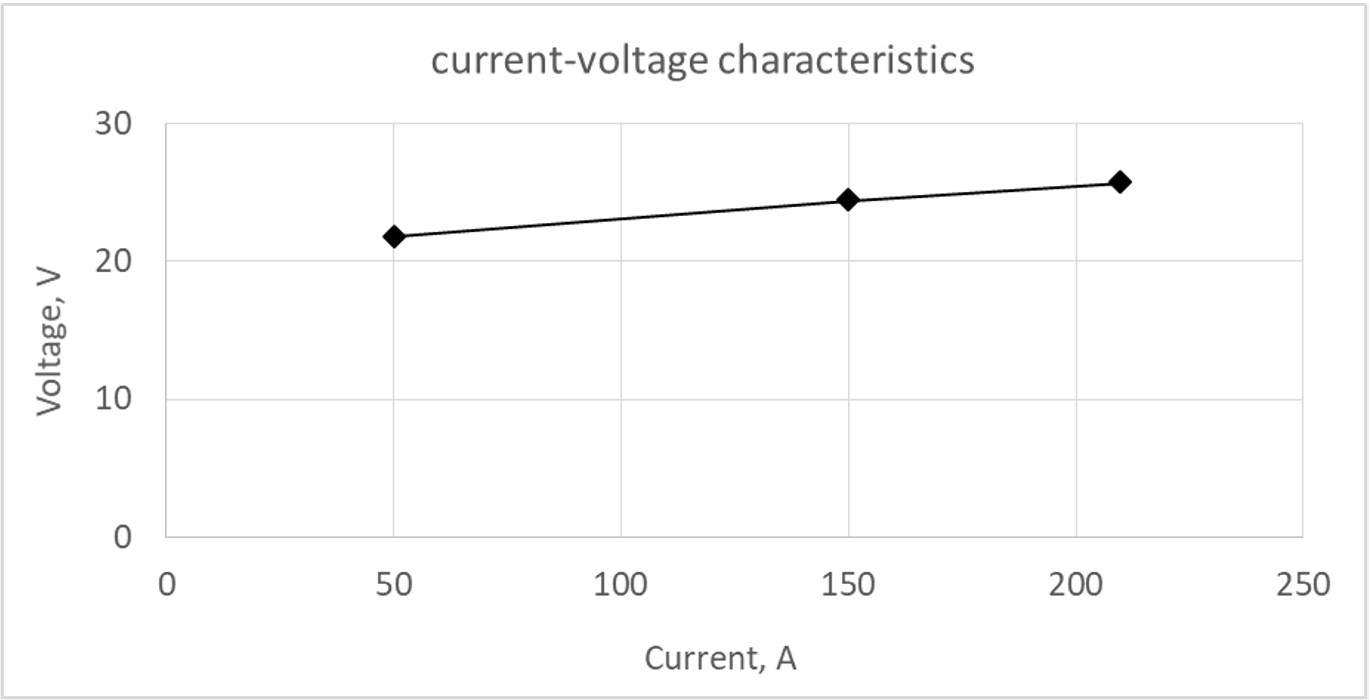

Typical current-voltage characteristics

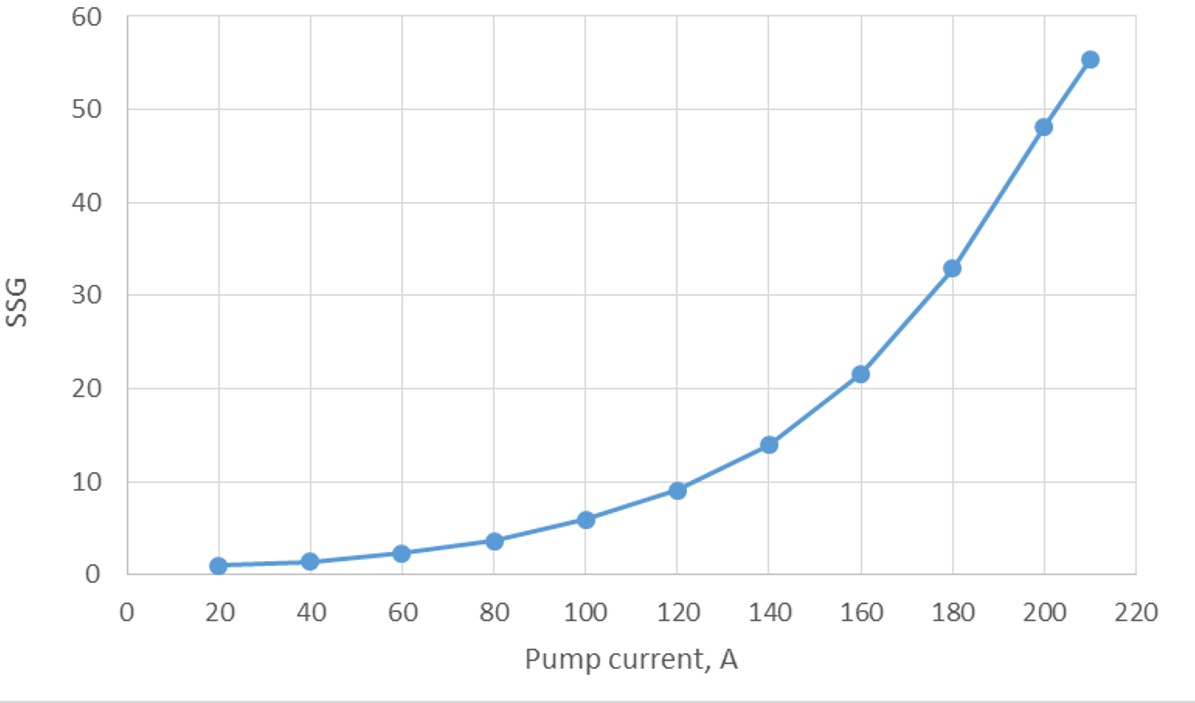

Small signal gain

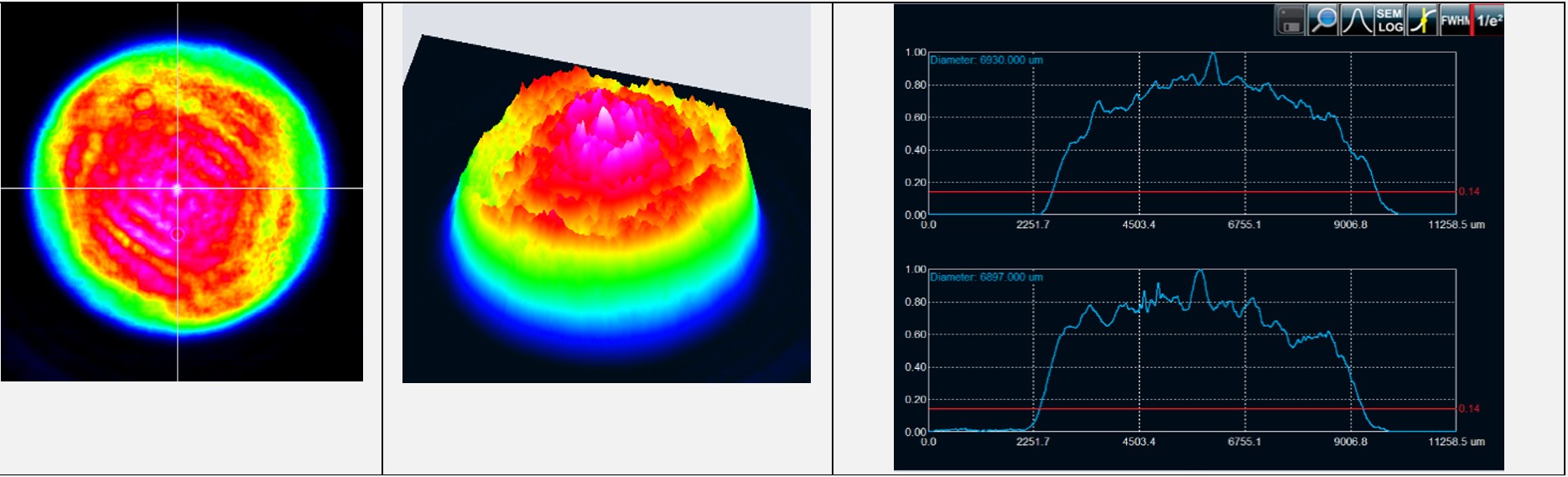

Typical beam profile

Typical beam profile at a distance of 900 mm from the output of the laser cavity @ current 210 A, repetition rate 10 Hz, pulse duration 0.34 ms (for reference only)

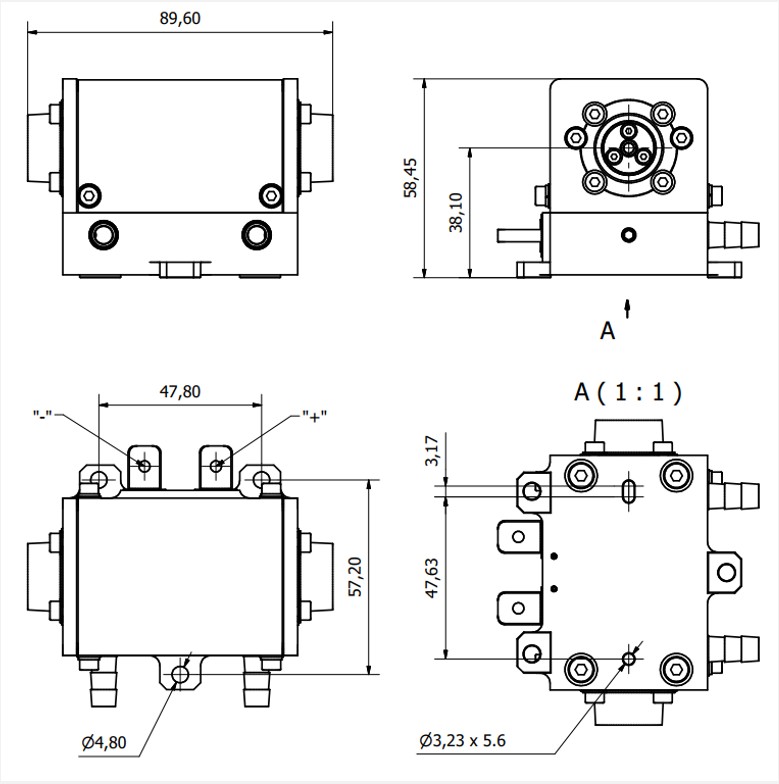

Dimensional drawing
