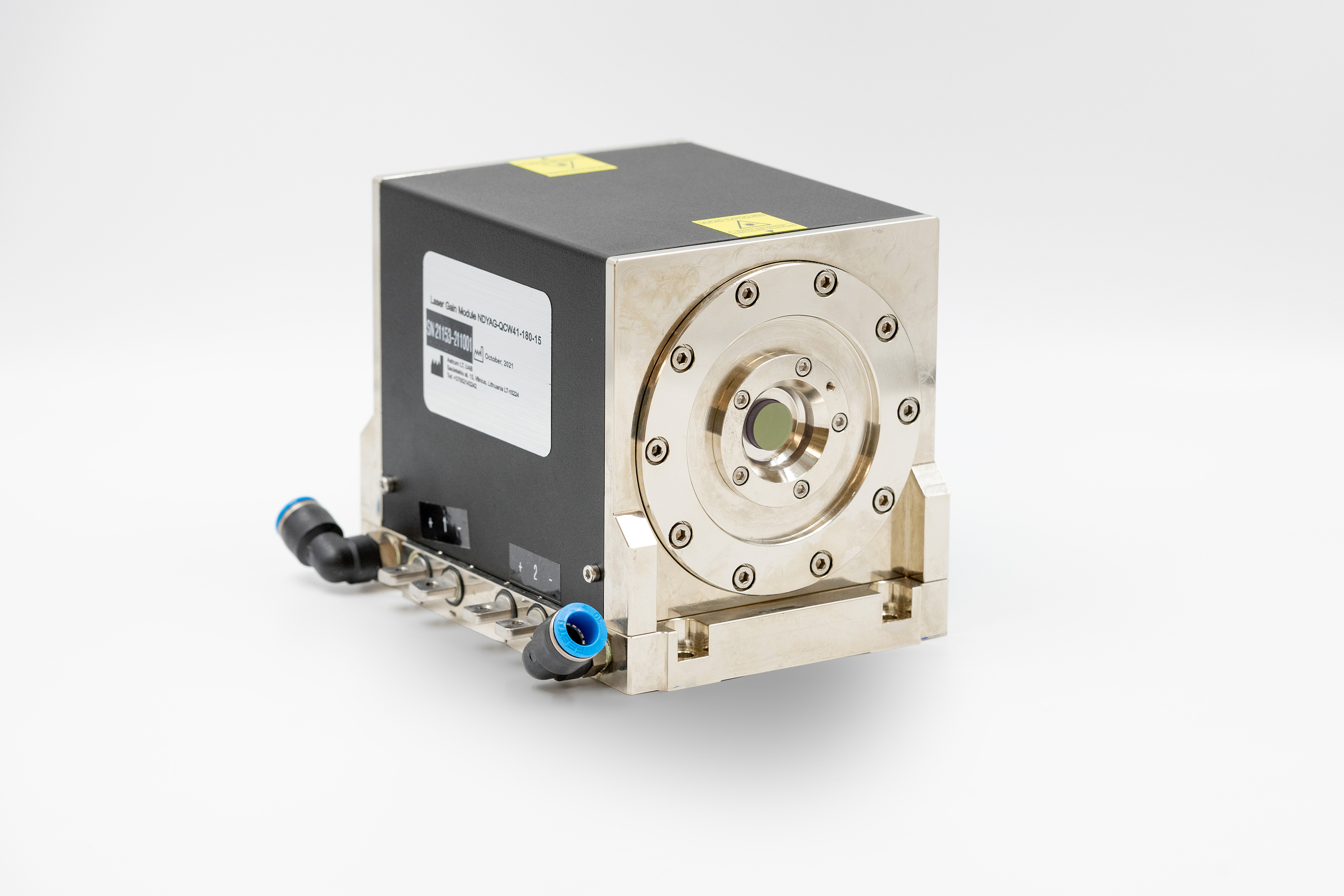

NDYAG-QCW41-180-15

Safe and rigid housing. EEL diode pumping. Optimized for long service life performance.

1064nm

WL

QCW

Mode

41kW

Peak pump

0.34-4ms

Pulse length

4.7-25.5J

Pulse energy

Request Price

Description

The module is designed to be used as a part of generator in an intracavity application, as well as an amplifier for an extracavity application. Used for MOPA build and cascade amplification system.

Part number 2-01213-01

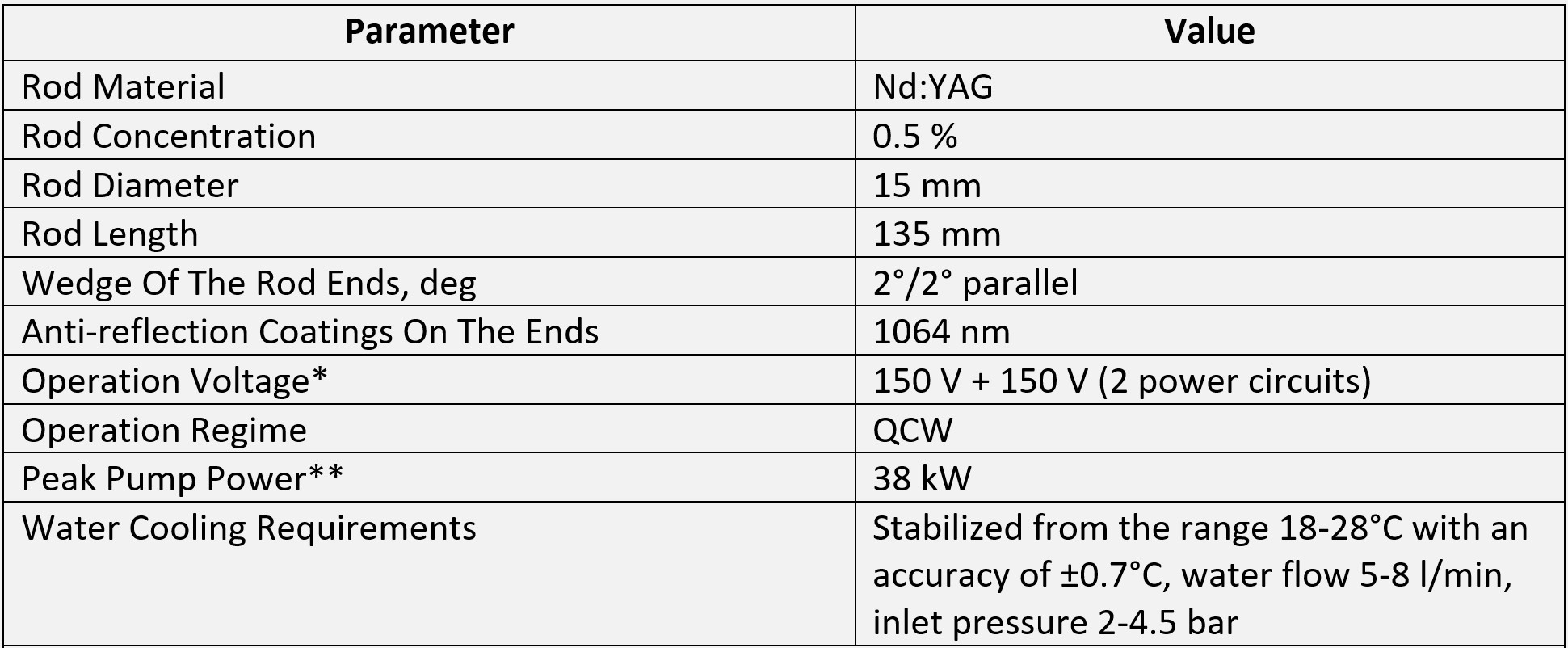

Specification

* Typical current-voltage characteristics is shown below.

** Calculated for standard operation mode: pulse duration 0.34 ms, repetition rate 20 Hz, current 210

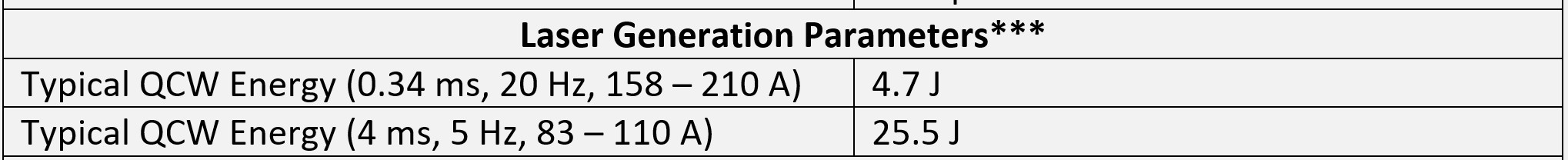

Product test parameters

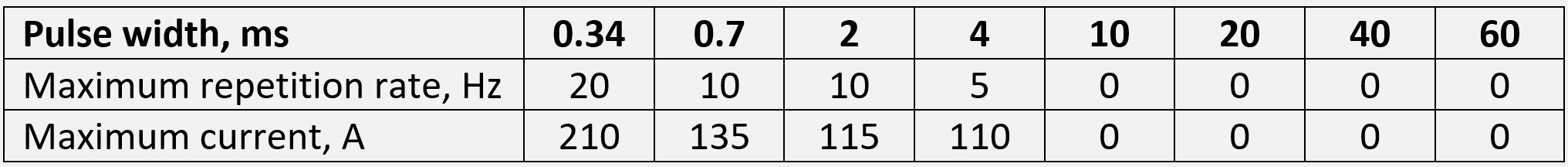

Operational reference

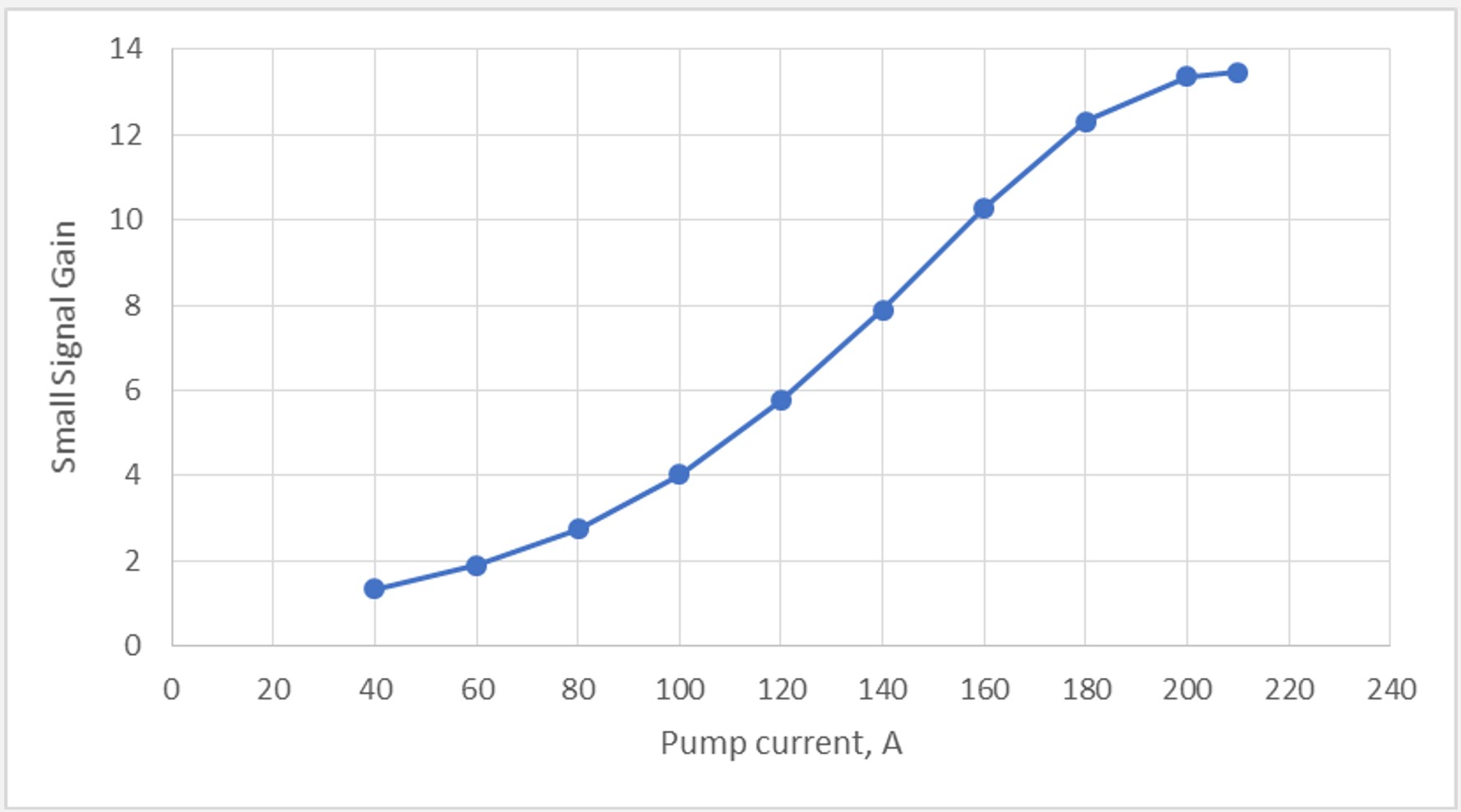

Small signal gain

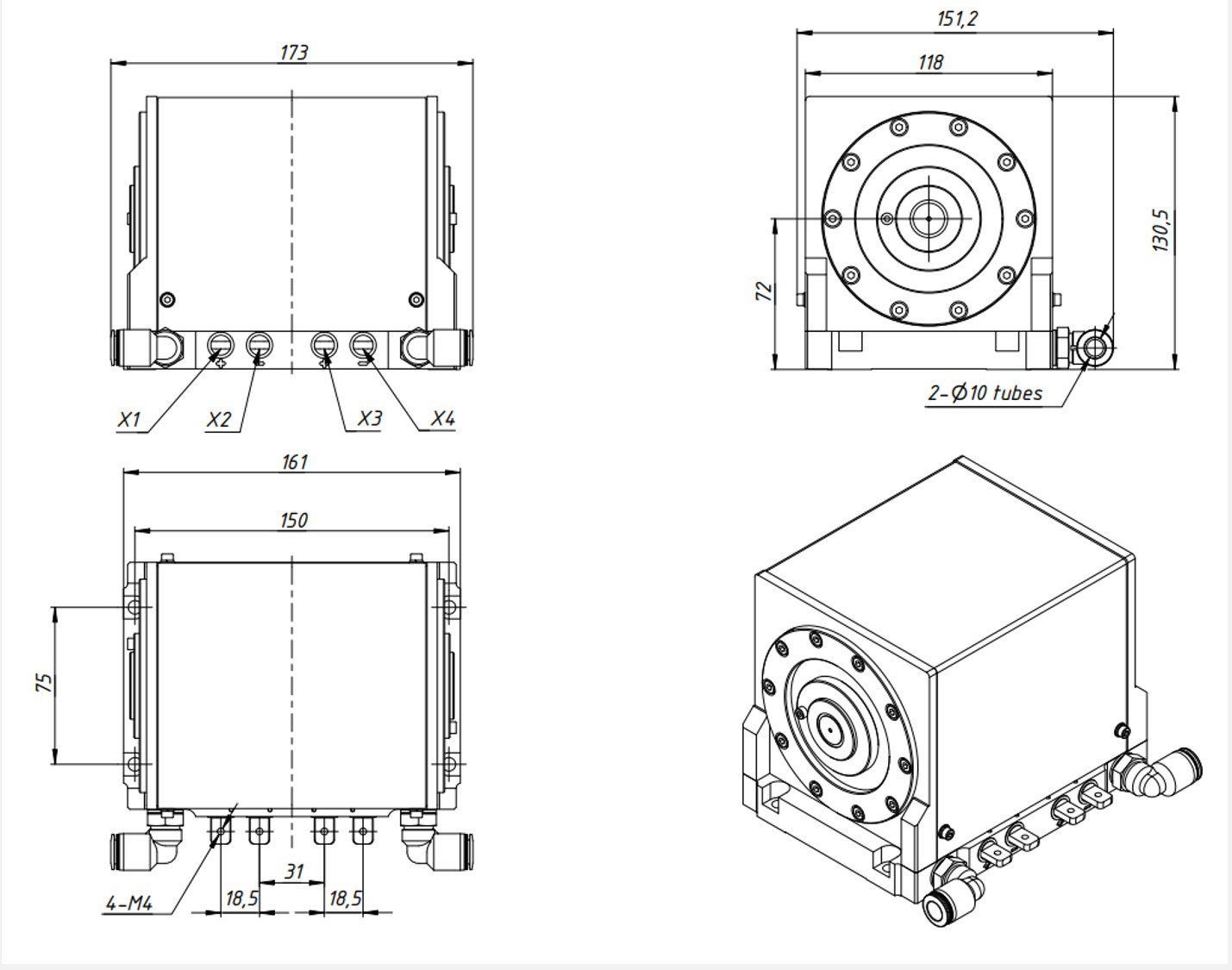

Dimensional drawing
