Nanosecond oscillator

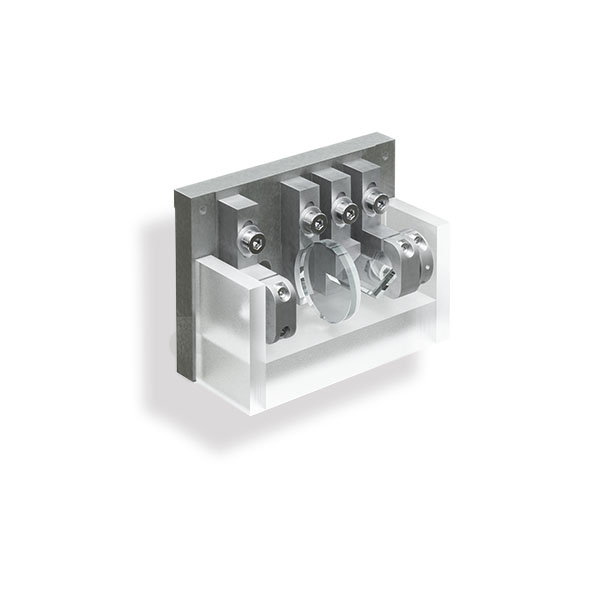

This model is a nanosecond passively Q-switched diode-pumped Nd:YAG/Cr:YAG laser.
This model is a nanosecond passively Q-switched diode-pumped Nd:YAG/Cr:YAG laser.
The laser delivers up to 0.8 mJ pulses with pulse duration as low as 3 ns and peak power exceeding 0.27 MW in a TEM00 beam.
It can be used as a source of nanosecond radiation or as a master oscillator of laser systems with high energy in a pulse.
Applications:
- Cosmetology
- Material processing
- Marking
- Spectroscopic and nonlinear optics applications
- Other science applications
| Wavelength | 1064 nm |
| Pulse Energy | 0.8 mJ |
| Pulse Width | 3.2 ns ± 0.2 ns |
| Repetition Rate | 10 Hz (20 Hz option) |
| Modulation type | Passive Q-switch |
| Pulse to Pulse Energy Stability (RMS) | < 4 % |
| Optical Pulse Jitter | < 15 μs |

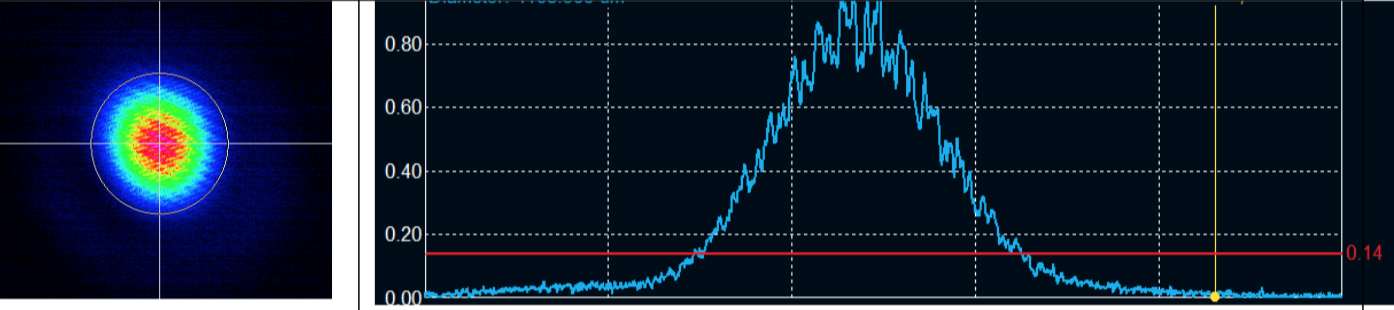

| Beam Profile at the Output of the Module |
Gaussian |
| Beam Divergence | < 1 mrad |
| Beam Diameter (1/e 2 ) | 1.2 mm |
| Polarization Ratio | > 50:1 |

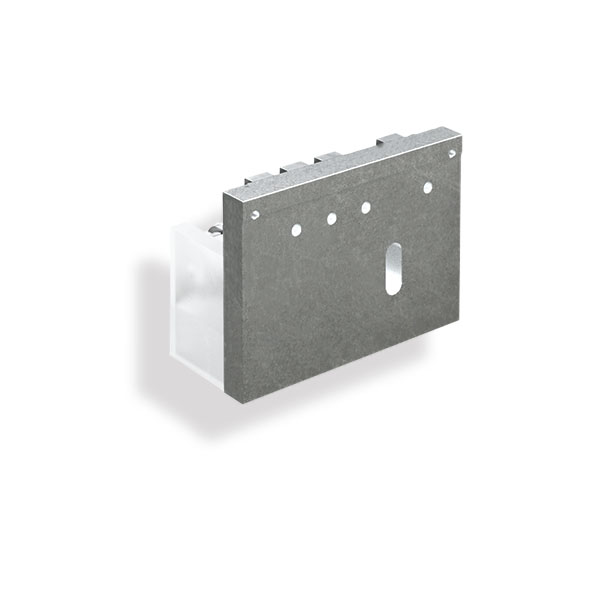

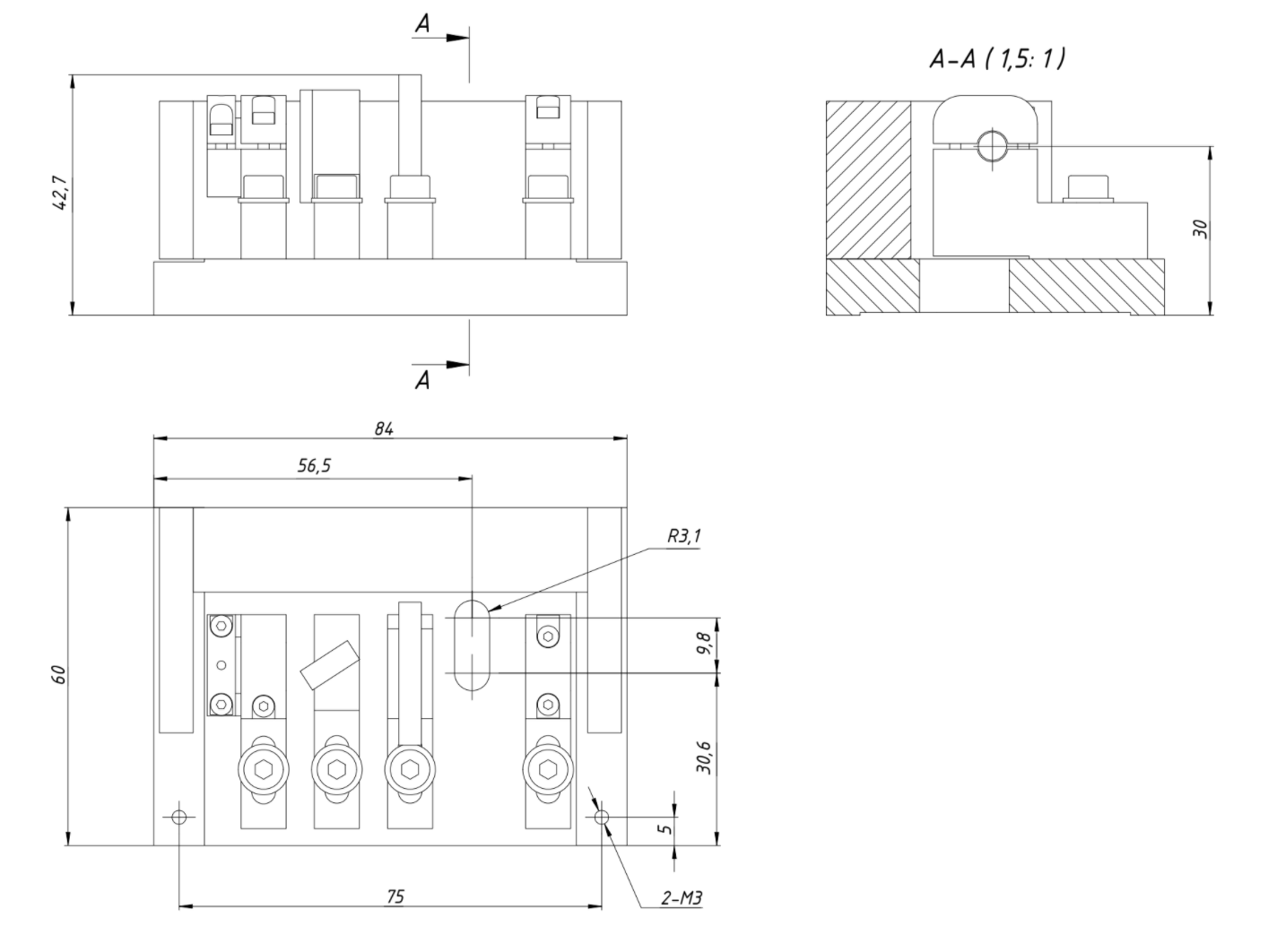

| Laser Head Dimensions | 84 mm × 60 mm × 43 mm |
