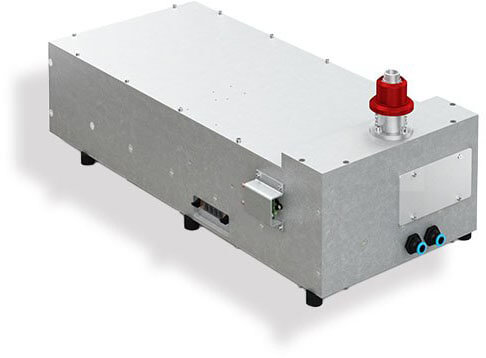

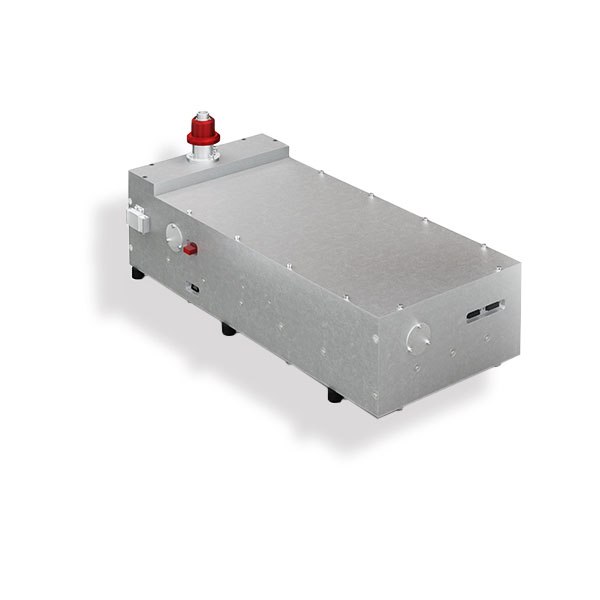

NML-NDYLF/KTP-5J-E-583
Yellow/orange laser, diode pumped. High pulsed power. High energy.
Cosmetology / Aesthetic medicine
Yellow/orange laser, diode pumped. High pulsed power. High energy.
Cosmetology / Aesthetic medicine
| Model | NML-NDYLFKTP-0-5J-E-583 | |
| Wavelength | 583 nm | |
| Pumping | ||
| Type | Diode | |
| Peak Power | 10kW | |
| Modulation type | Electro-optic modulation (EOM) | |
| Pulse energy | ||
| at 583 nm, 5 ms | 0.4J (5kHz) / 0.1J (14.5kHz) | |
| at 583 nm, 10 ms | 0.8J (5kHz) /0.2J (14.5kHz) | |
| at 583 nm, 60 ms | 5J (5kHz) /1.2J (14.5kHz) | |
| Pulse duration | ||
| Q-switched pulse | 50 - 250ns | |

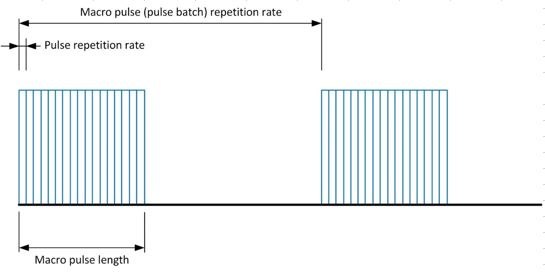

| Macro pulse (pulse batch) | 5 - 60ms | |
| Parameter | ||
| Beam divergence | < 3mrad |
|
| Typical beam diameter | 2-3mm | |
| Beam profile at the output aperture | near Gaussian | |

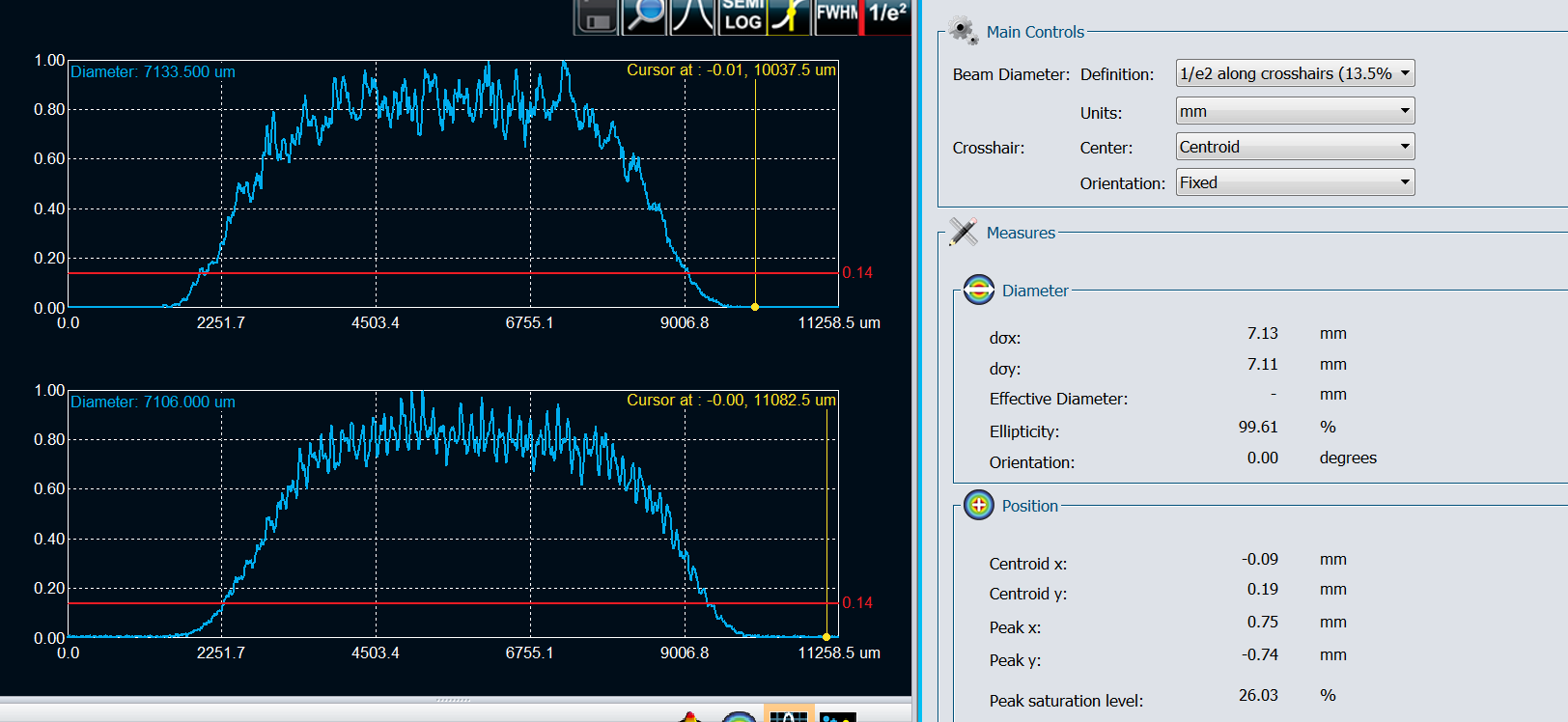

| Beam diameter at the output of fiber coupled manipulator (option) | 1-6mm | |

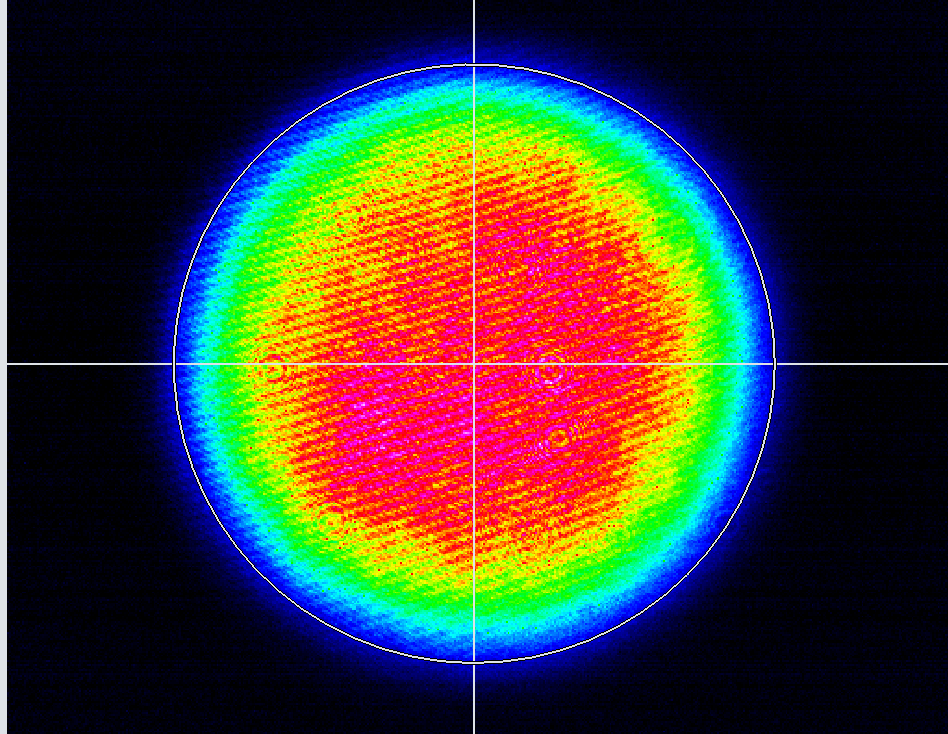

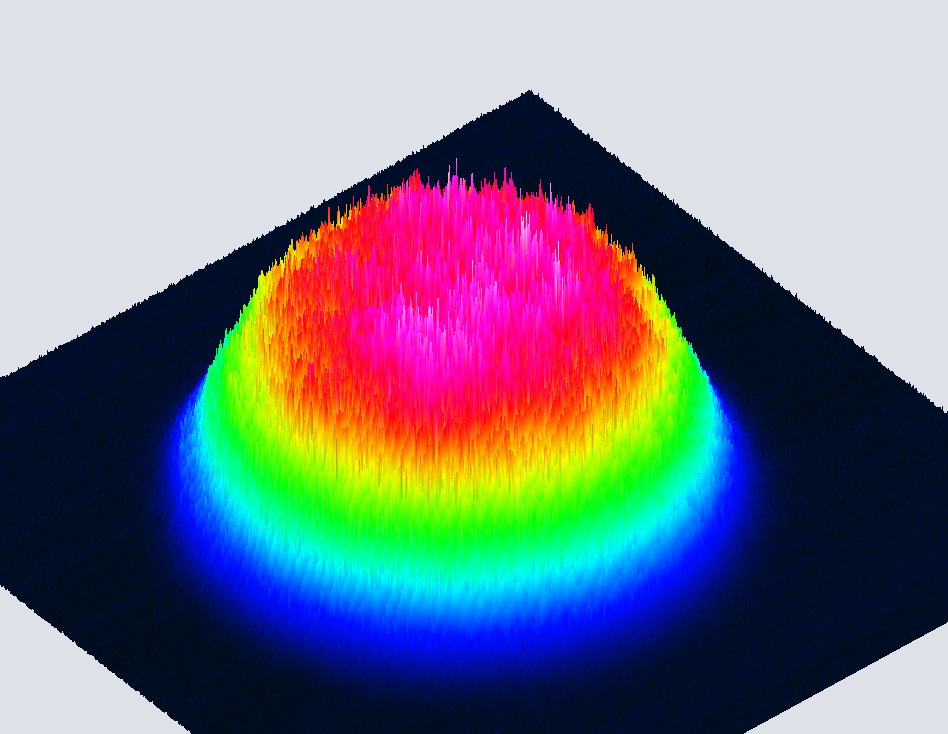

| Beam profile at the output of fiber coupled manipulator (option) | "Top-hat" | |
| Mode | Multimode | |
| Cooling requirements | ||
| Water temperature | stabilized, from range 15-30 °C | |
| Inlet pressure | 1-4 bar | |
| Water flow | 4-10 l/min | |
