OEM 760+808+1060nm laser for hair removal

The OEM 760+808+1060nm diode laser machine for hair removal is a modular, mass-production-ready system that integrates separate fiber-coupled laser modules into a single handpiece, allowing simultaneous, mixed, or independent operation of 760nm, 808nm, and 1060nm wavelengths. With a power range of 400W to 4800W, it supports up to 12 modules, ensuring high efficiency and flexibility for various treatment needs. Its field-upgradable, customizable design offers multiple handpiece configurations, including standard chilling (10x10mm or 15x15mm) or vacuum-assisted cooling (27x27mm), delivering versatile, high-performance laser hair removal solutions.

Request Price

Description

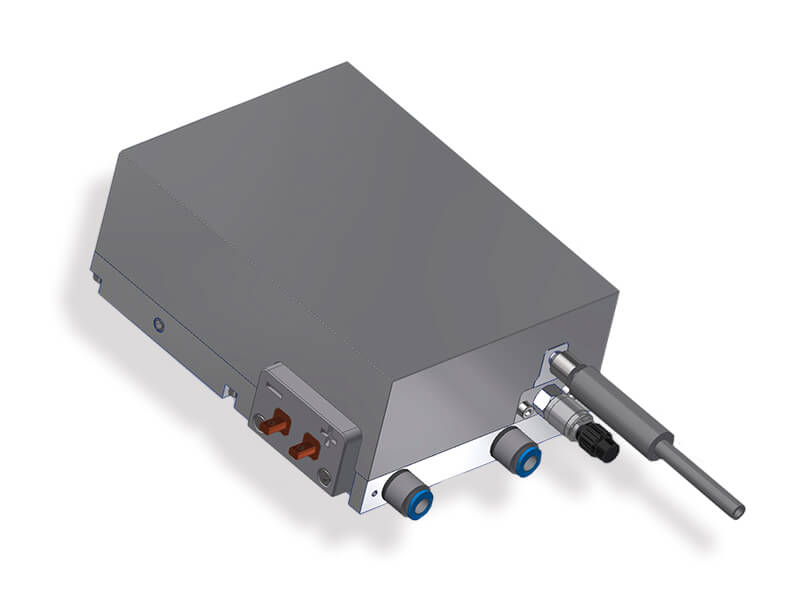

The system features 400W to 4800W
depending on number of modules installed, up to 12 modules can be integrated into a single system.

Fiber delivery of laser to handpiece, control of each wavelength or combination in one pulse simultaneously
High power with 3 wavelength
Combination of modules in any configuration per demand
Independent modes for mixed or separate wavelength / customizable or preset settings and modes
Upgradable in field

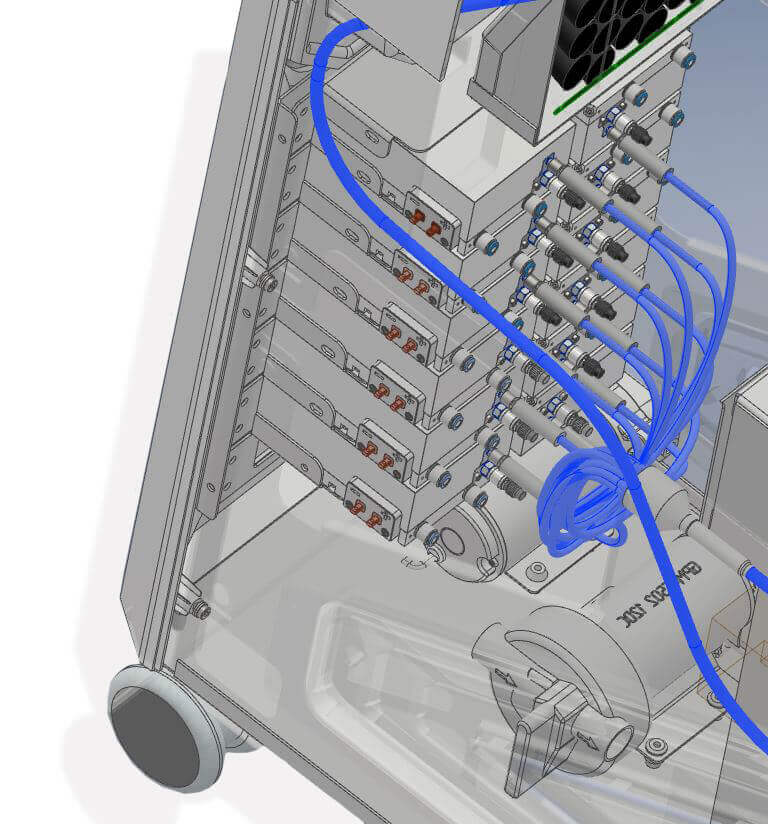

Unique modular design with multiple configurations depending on the customer’s needs

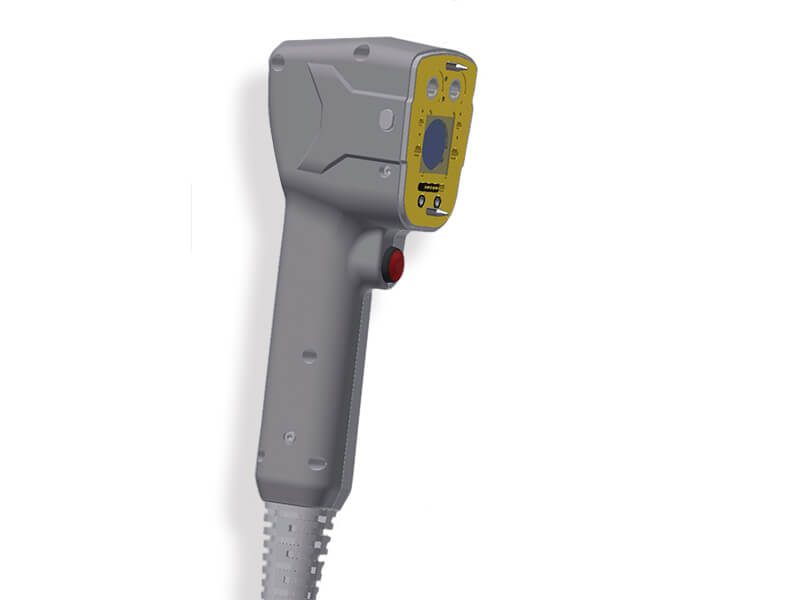

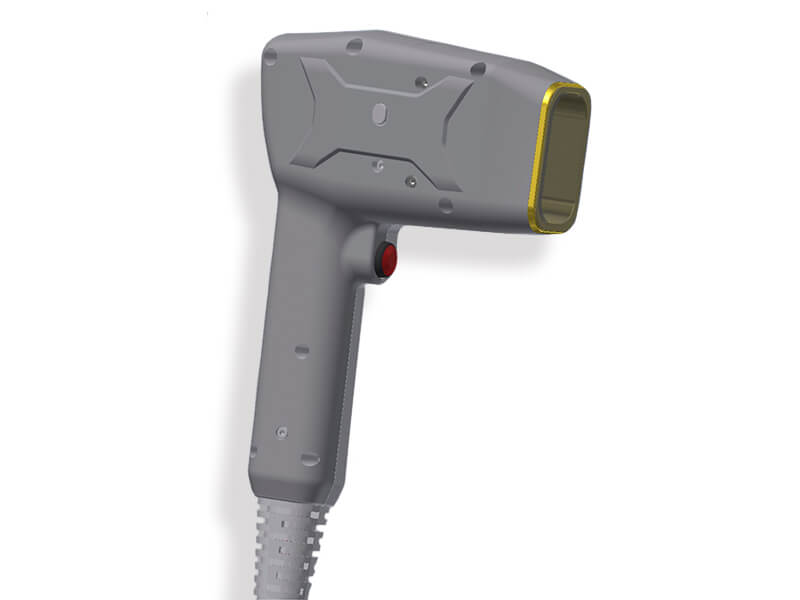

Handpiece with standard chilling (10x10 or 15x15 mm) or vacuum (27x27 mm), light weight

Specification

Available spot size
Sapphire, active cooled	10x10 mm
Sapphire, active cooled	15x15 mm
Vacuum handpiece	27x27
Pulse length	1-100 ms
Wavelength	760, 808, 1060nm
Mode	Mixed or alternate wavelength, single or burst pulsing, programmable
Frequency	10 Hz
