OEM laser solution for Q-Switch Nd:YAG/KTP systems

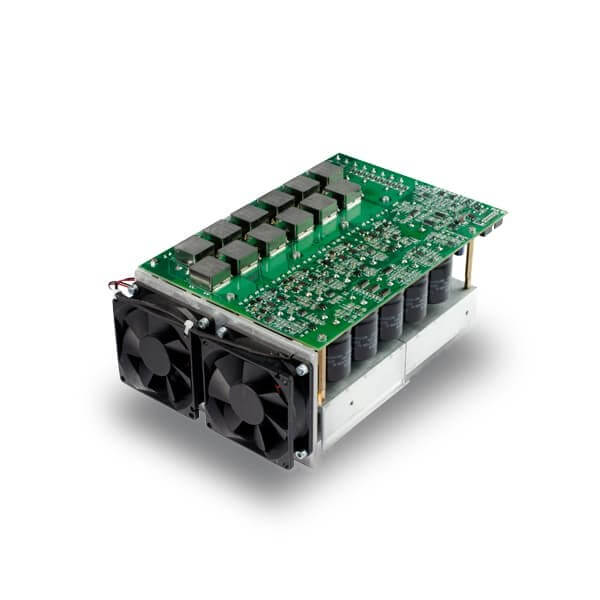

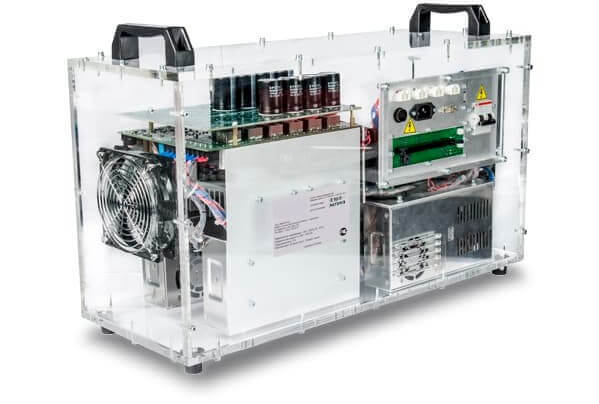

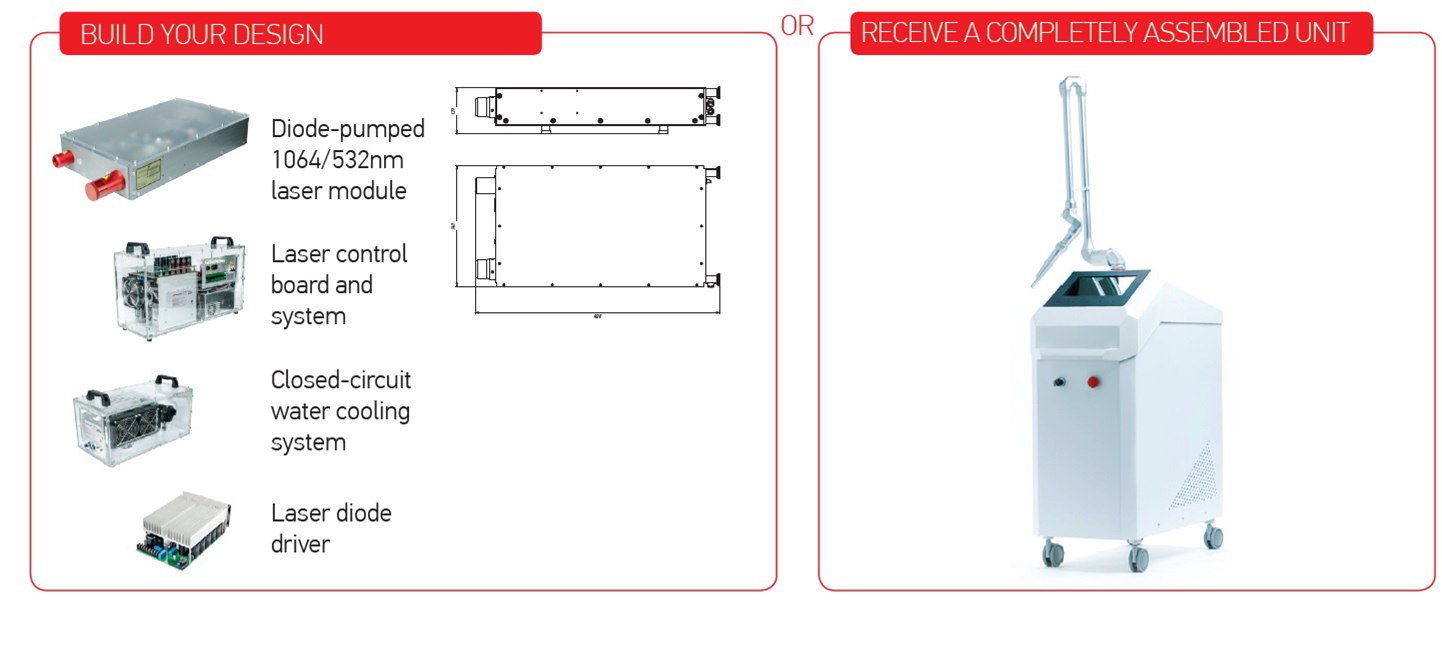

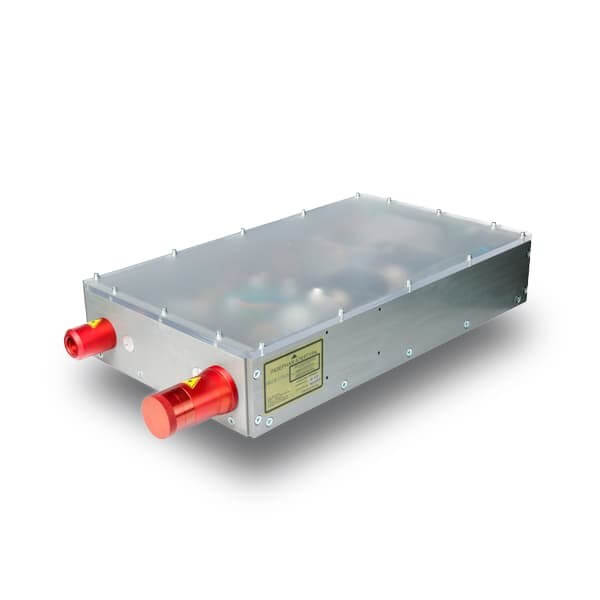

Complete OEM solution for a Q-switch Nd:Yag laser system: laser module, driver, control and cooling system.

Request Price

Description

A pulse (300mks - 40ms) in a long-pulsed mode can be controllably divided into 1, 2 or 3 sub-pulses, each at a chosen energy level. Such customization turns a simple laser beam into a controlled, precise and finely adjusted tool to effectively treat targeted lesions but avoid damaging neighboring tissue.

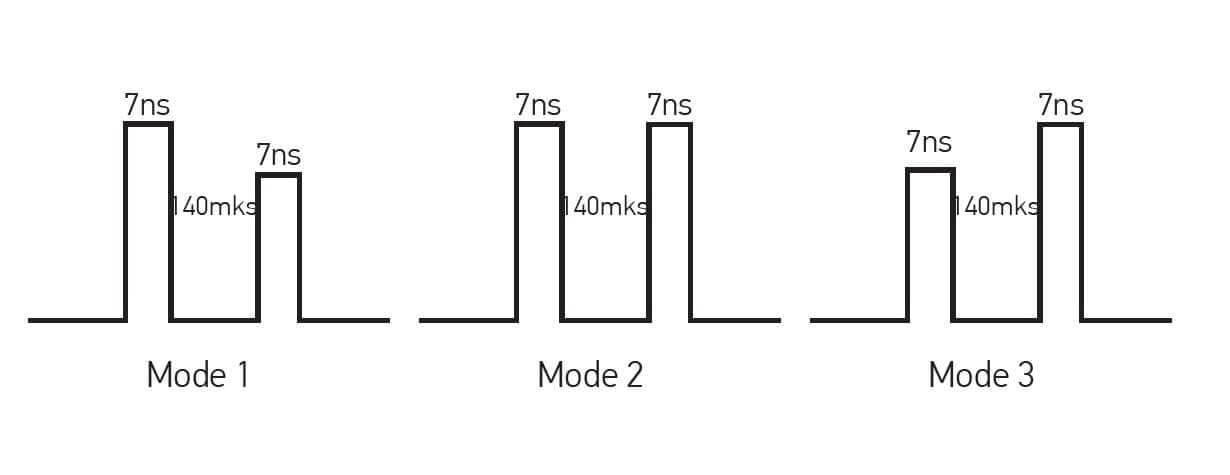

The Q-switched mode features a double-pulse routine, each pulse 7ns long with preset energy levels and 140mks between them. Use different energy patterns when applying the double pulse mode to secure a cascade effect which is a combination of mechanical and thermal actions, so that only chromophores are targeted, and no neighboring tissue is damaged.

Semiconductor laser system
GUI Windows based
UNIQUE Q-switch + long pulse in a single module
600-1100mJ, single pulse and PTP mode

Specification

Wave length, nm	1064		532
Operation mode	Long-pulsed	Q-switched	Q-switched	Long-pulsed
Pulse energy, J	up to 20	up to 1.1	up to 0.5	up to 4.5
Double pulse energy, J		up to 2.2	up to 1.0
Energy density, J/cm2	up to2,500	u p to140	up to 63	up to 573
Pulse length	0.3 – 40ms	5 - 10ns	5 - 10ns	0.3 – 40ms
Max pulse repetition rate, Hz	100	100	100	100

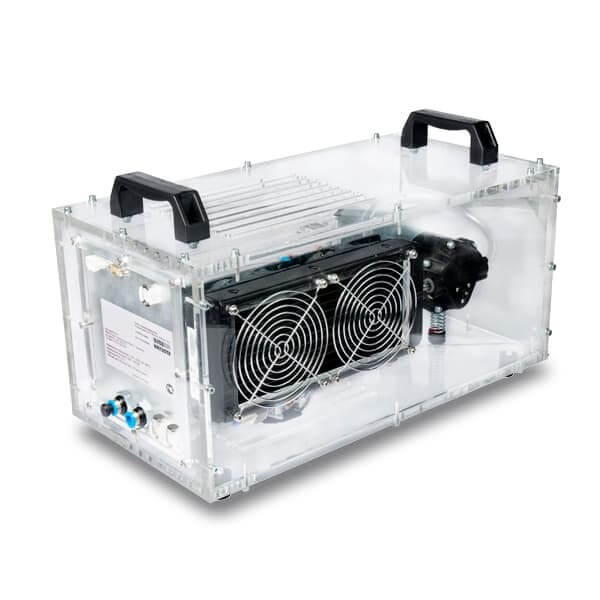

Cooling system	Air-liquid, integrated
Spot size, mm	1 - 10mm
